19-04-22951-1298

Active

Parker Chomerics

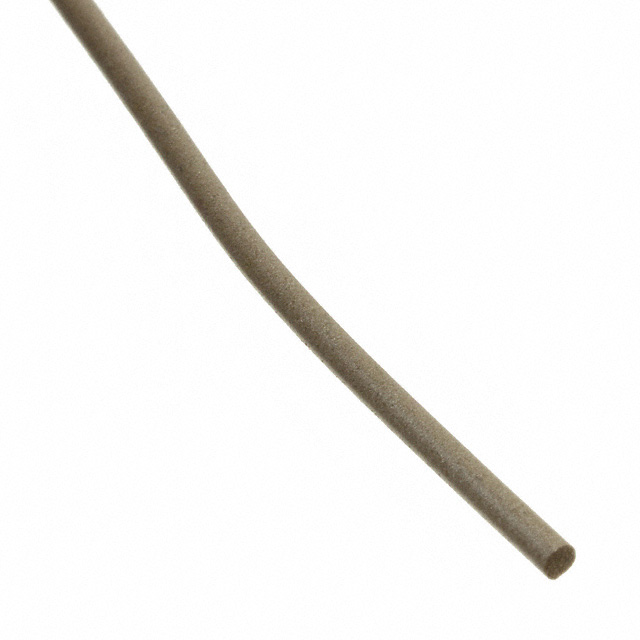

RF EMI GASKET 12" X 0.07" FOOT

19-04-22951-1298

Active

Parker Chomerics

RF EMI GASKET 12" X 0.07" FOOT

Description Specifications Series Pricing CAD Documents

Description

General part information

19-04 Series

RF EMI Gasket CHO-SEAL® 1298 Silicone Elastomer 0.070" (1.78mm) X Enter Number of Feet in Order Quantity X

Technical Specifications

Parameters and characteristics for this part

Specification	19-04-22951-1298

Length	Enter Number of Feet in Order Quantity
Material	Silicone Elastomer, Fluorosilicone Elastomer Ag, Al
Operating Temperature (Max)	66 °C, 200 °C
Operating Temperature (Min)	-29 °C, -55 °C
Shape	Round
Type	Gasket
Width	0.07 in

19-04 Series

Part	Spool Size	Width	Attachment Method	Plating	Material	Type	Shape	Length	Operating Temperature (Min)	Operating Temperature (Max)	Length
Parker Chomerics 19-04-20581-6502	100 ft	0.053 in	No Adhesive	Nickel	Conductive Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-29 °C	66 °C
Parker Chomerics 19-04-27546-1298		0.062 in			Al Fluorosilicone Elastomer Ag Silicone Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-55 °C -29 °C	66 °C 200 °C
Parker Chomerics 19-04-16162-6502		0.1 in	No Adhesive	Nickel	Conductive Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-29 °C	66 °C	12 in
Parker Chomerics 19-04-22371-1298		0.043 in			Al Fluorosilicone Elastomer Ag Silicone Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-55 °C -29 °C	66 °C 200 °C
Parker Chomerics 19-04-28067-6502		0.06 in	Non-Conductive Adhesive	Nickel	Conductive Elastomer	Gasket	Round		-29 °C	66 °C	12 in
Parker Chomerics 19-04-28067-S6305		0.06 in	No Adhesive	Nickel	Conductive Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-29 °C	66 °C	12 in
Parker Chomerics 19-04-28402-1298		0.066 in			Al Fluorosilicone Elastomer Ag Silicone Elastomer	Gasket	Round		-55 °C -29 °C	66 °C 200 °C	12 in
Parker Chomerics 19-04-14206-6502		0.08 in	No Adhesive	Nickel	Conductive Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-29 °C	66 °C	12 in
Parker Chomerics 19-04-22951-1298		0.07 in			Al Fluorosilicone Elastomer Ag Silicone Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-55 °C -29 °C	66 °C 200 °C
Parker Chomerics 19-04-14206-1298		0.08 in			Al Fluorosilicone Elastomer Ag Silicone Elastomer	Gasket	Round	Enter Number of Feet in Order Quantity	-55 °C -29 °C	66 °C 200 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

Part Number Letter Document

19-04-22951-1298 | Datasheet
