MAX9928FABT+TG45
ActiveAnalog Devices Inc./Maxim Integrated

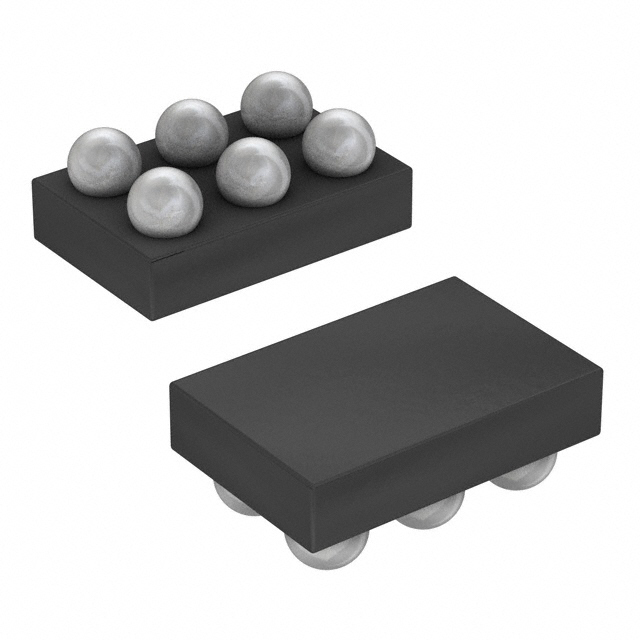

IC CURRENT SENSE 1 CIRCUIT 6UCSP
Deep-Dive with AI
Search across all available documentation for this part.
MAX9928FABT+TG45
ActiveAnalog Devices Inc./Maxim Integrated
IC CURRENT SENSE 1 CIRCUIT 6UCSP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | MAX9928FABT+TG45 | MAX9928 Series |
|---|---|---|
| -3db Bandwidth | 150 kHz | 150 kHz |
| Amplifier Type | Current Sense | Current Sense |
| Board Type | - | Fully Populated |
| Channels per IC | - | 1 - Single |
| Current - Input Bias | 1.6 µA | 1.6 µA |
| Current - Supply | 20 µA | 20 µA |
| Current - Supply (Main IC) | - | 20 µA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Type | - | Single-Ended |
| Package / Case | CSPBGA, 6-WFBGA | 8-MSOP, 8-TSSOP, CSPBGA, 6-WFBGA |
| Package / Case | - | 0.118 in |
| Package / Case | - | 3 mm |
| Supplied Contents | - | Board(s) |
| Supplier Device Package | - | 8-uMAX/uSOP |
| Utilized IC / Part | - | MAX9928 |
| Voltage - Input Offset | 600 µV | 600 µV |
| Voltage - Supply Span (Max) [Max] | 5.5 V | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V | 2.5 V |
| Voltage - Supply, Single/Dual (±) | - | 5.5 V |
| Voltage - Supply, Single/Dual (±) | - | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
MAX9928 Series
IC CURRENT SENSE 1 CIRCUIT 8UMAX
| Part | Amplifier Type | Current - Supply | Package / Case | Package / Case [custom] | Package / Case | Mounting Type | Supplier Device Package | Current - Input Bias | -3db Bandwidth | Voltage - Supply Span (Max) [Max] | Number of Circuits | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input Offset | Voltage - Supply Span (Min) [Min] | Current - Supply (Main IC) | Utilized IC / Part | Channels per IC | Board Type | Supplied Contents | Output Type | Voltage - Supply, Single/Dual (±) [Max] | Voltage - Supply, Single/Dual (±) [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Analog Devices Inc./Maxim Integrated MAX9928FAUA+T | Current Sense | 20 µA | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | Surface Mount | 8-uMAX/uSOP | 1.6 µA | 150 kHz | 5.5 V | 1 | 125 °C | -40 °C | 600 µV | 2.5 V | ||||||||
Analog Devices Inc./Maxim Integrated MAX9928EVKIT+ | Current Sense | 150 kHz | 20 µA | MAX9928 | 1 - Single | Fully Populated | Board(s) | Single-Ended | 5.5 V | 2.5 V | |||||||||||||
Analog Devices Inc./Maxim Integrated MAX9928FABT+TG45 | Current Sense | 20 µA | 6-WFBGA, CSPBGA | Surface Mount | 1.6 µA | 150 kHz | 5.5 V | 1 | 125 °C | -40 °C | 600 µV | 2.5 V | |||||||||||
Analog Devices Inc./Maxim Integrated MAX9928FABT+T | Current Sense | 20 µA | 6-WFBGA, CSPBGA | Surface Mount | 1.6 µA | 150 kHz | 5.5 V | 1 | 125 °C | -40 °C | 600 µV | 2.5 V | |||||||||||
Analog Devices Inc./Maxim Integrated MAX9928FAUA+ | Current Sense | 20 µA | 8-MSOP, 8-TSSOP | 0.118 in | 3 mm | Surface Mount | 8-uMAX/uSOP | 1.6 µA | 150 kHz | 5.5 V | 1 | 125 °C | -40 °C | 600 µV | 2.5 V |
Description
General part information
MAX9928 Series
Current Sense Amplifier 1 Circuit 6-UCSP
Documents
Technical documentation and resources
No documents available
