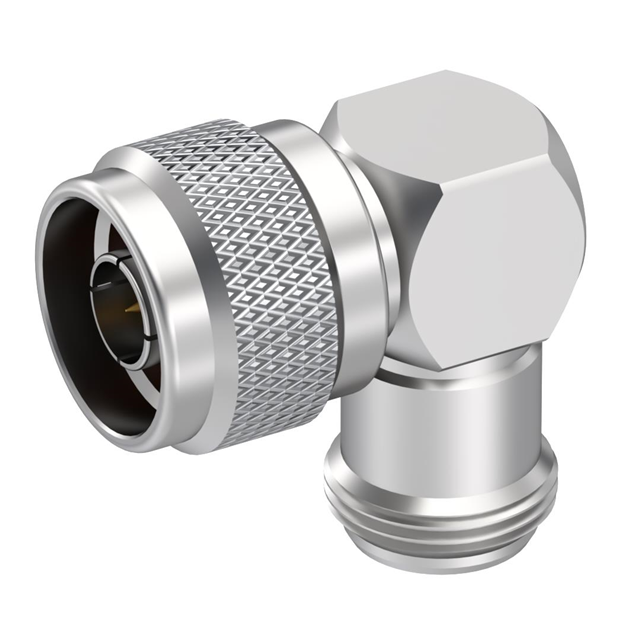

R161771000

Active

Radiall USA, Inc.

COAX ADAPT N TO N

Search across all available documentation for this part.

Active

Radiall USA, Inc.

COAX ADAPT N TO N

Technical Specifications

Parameters and characteristics for this part

Specification	R161771000

Adapter Series	N to N
Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Same Series
Convert From (Adapter End)	N Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line), Right Angle
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Right Angle

Part	Center Contact Material	Conversion Type	Convert From (Adapter End)	Adapter Type	Mating Cycles	Style	Dielectric Material	Mounting Type	Adapter Series	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Body Material	Impedance	Convert To (Adapter End)
Radiall USA, Inc. R161771000	Beryllium Copper	Same Series	N Plug Male Pin	Plug to Jack	500	Right Angle	Polytetrafluoroethylene (PTFE)	Free Hanging (In-Line) Right Angle	N to N	Gold	11 GHz	155 °C	-55 °C	Brass	50 Ohms	Female Socket N Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector N Plug, Male Pin To N Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
