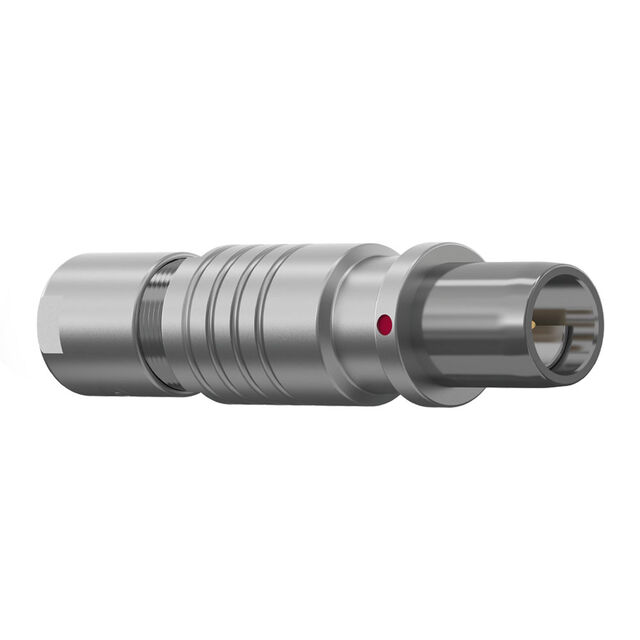

A53F1C-P18MJG0-7500

Active

ODU

ODU MINI-SNAP PLUG, STY 5, SZ 3,

Search across all available documentation for this part.

Active

ODU

ODU MINI-SNAP PLUG, STY 5, SZ 3,

Technical Specifications

Parameters and characteristics for this part

Specification	A53F1C-P18MJG0-7500

Applications	Military, Medical, Industrial, Testing Equipment & Measurement
Backshell Material, Plating	Brass, Chrome over Nickel
Cable Opening [custom]	0.295 in, 0.276 in
Cable Opening [custom]	7 mm
Cable Opening [custom]	7.5 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	18
Operating Temperature [Max]	120 °C
Operating Temperature [Min]	-40 °C
Orientation	1
Primary Material	Metal
Shell Finish	Chrome over Nickel
Shell Material	Brass
Shell Size - Insert	3
Shielding	Unshielded
Voltage Rating	366 V

ODU MINI-SNAP PLUG, STY 5, SZ 3,

Part	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Fastening Type	Insert Material	Material Flammability Rating	Voltage Rating	Shielding	Shell Material	Primary Material	Shell Finish	Backshell Material, Plating	Shell Size - Insert	Contact Material	Mounting Type	Contact Finish - Mating	Orientation	Ingress Protection	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [custom]	Color	Number of Positions	Features	Connector Type	Current Rating (Amps)
ODU A53F1C-P18MJG0-7500	-40 °C	120 °C	Industrial, Medical, Military, Testing Equipment & Measurement	Push-Pull	Polyetheretherketone (PEEK)	UL94 V-0	366 V	Unshielded	Brass	Metal	Chrome over Nickel	Brass, Chrome over Nickel	3	Brass	Free Hanging (In-Line)	Gold	1	IP68 - Dust Tight, Waterproof	0.276 in, 0.295 in	7 mm	7.5 mm	Silver	18	Backshell	Male Pins, Plug	7.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 124.12

General part information

18 Position Circular Connector Plug, Male Pins Solder Cup
