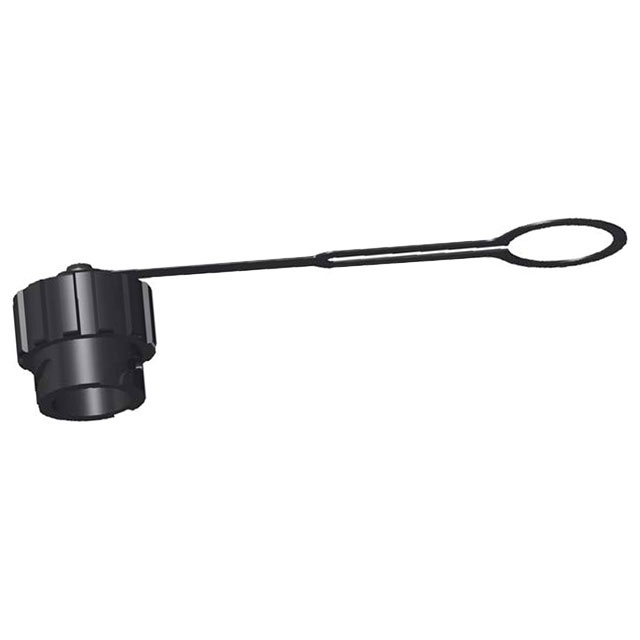

17-400390

Active

Amphenol CONEC

CONN PROTECTIVE COVER BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

17-400390

Active

Amphenol CONEC

CONN PROTECTIVE COVER BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	17-400390

Accessory Type	Cap (Cover), Protective
Color	Black
Features	Waterproof, Dust Tight, Contains Strap with Ring
For Use With/Related Products	Male Cable Connector, 2Pos and 3Pos
Material	Polybutylene Terephthalate (PBT)

17-4003 Series

Part	Orientation	Connector Type	Mounting Type	Insert Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Shielding	Current Rating (Amps)	Backshell Material, Plating	Primary Material	Applications	Ingress Protection	Voltage Rating	Contact Material	Contact Finish Thickness - Mating	Material Flammability Rating	Termination	Color	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Number of Positions	Fastening Type	Shell Material	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Features	Accessory Type	For Use With/Related Products	Material	Number of Positions [custom]	Number of Positions [custom]	Number of Positions [custom]	Cable Opening [Max] [diameter]
Amphenol CONEC 17-400333	Keyed	Male Pins Plug	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	100 °C	-40 °C	Gold	Unshielded	30 A	Glass Filled Nylon Polyamide (PA)	Plastic	Automation Control Industrial Telecommunications	IP67 - Dust Tight Waterproof	48 VAC	Copper Alloy	Flash	UL94 V-0	Crimp	Black	0.236 in 0.472 in	5.99 mm	11.99 mm	2	Bayonet Lock	Glass Filled Nylon Polyamide (PA)
Amphenol CONEC 17-400343	Keyed	Male Pins Plug	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	100 °C	-40 °C	Gold	Unshielded	30 A	Glass Filled Nylon Polyamide (PA)	Plastic	Automation Control Industrial Telecommunications	IP67 - Dust Tight Waterproof	48 VAC	Copper Alloy	Flash	UL94 V-0	Crimp	Black				2	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	0.394 in	14 mm	10 mm	0.551 in
Amphenol CONEC 17-400390																			Black											Contains Strap with Ring Dust Tight Waterproof	Cap (Cover) Protective	Male Cable Connector 2Pos and 3Pos	Polybutylene Terephthalate (PBT)
Amphenol CONEC 17-400303	Keyed	Receptacle Female Sockets	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	100 °C	-40 °C	Gold	Unshielded	20 A	Glass Filled Nylon Polyamide (PA)	Plastic	Automation Control Industrial Telecommunications	IP67 - Dust Tight Waterproof	250 VAC	Copper Alloy	Flash	UL94 V-0	Crimp	Black	0.236 in 0.472 in	5.99 mm	11.99 mm		Bayonet Lock	Glass Filled Nylon Polyamide (PA)					Backshell Strain Relief				3	1	2
Amphenol CONEC 17-400323	Keyed	Receptacle Female Sockets	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	100 °C	-40 °C	Gold	Unshielded	20 A	Glass Filled Nylon Polyamide (PA)	Plastic	Automation Control Industrial Telecommunications	IP67 - Dust Tight Waterproof	250 VAC	Copper Alloy	Flash	UL94 V-0	Crimp	Black					Bayonet Lock	Glass Filled Nylon Polyamide (PA)	0.354 in		9 mm	0.63 in	Backshell Strain Relief				3	1	2	16 mm
Amphenol CONEC 17-400373	Keyed	Receptacle Female Sockets	Free Hanging (In-Line)	Polyamide (PA) Nylon Glass Filled	100 °C	-40 °C	Gold	Unshielded	30 A	Glass Filled Nylon Polyamide (PA)	Plastic	Automation Control Industrial Telecommunications	IP67 - Dust Tight Waterproof	48 VAC	Copper Alloy	Flash	UL94 V-0	Crimp	Black				2	Bayonet Lock	Glass Filled Nylon Polyamide (PA)	0.394 in	14 mm	10 mm	0.551 in	Backshell Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 4.07

Description

General part information

17-4003 Series

Connector Cap (Cover), Protective Black
