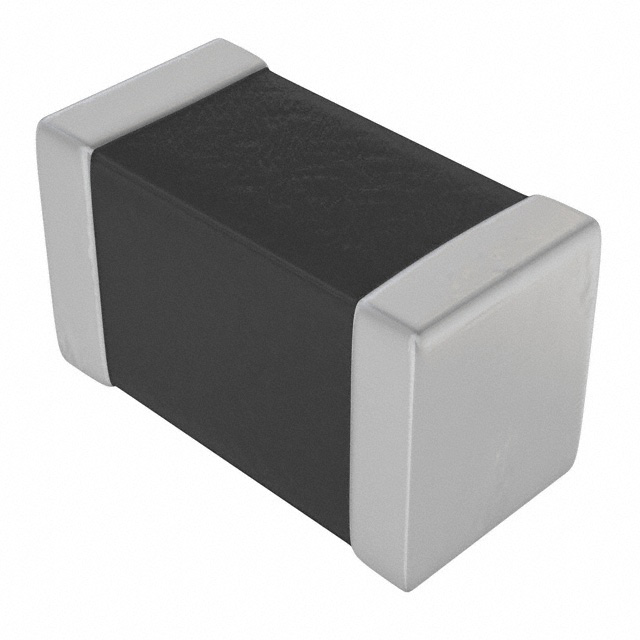

GMK316SD104JL-T

TAIYO YUDEN

CAP, LOW DISTORT, 1206, 35V, 100NF 5%, T&R ROHS COMPLIANT: YES

Search across all available documentation for this part.

TAIYO YUDEN

CAP, LOW DISTORT, 1206, 35V, 100NF 5%, T&R ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

CAP, LOW DISTORT, 1206, 35V, 100NF 5%, T&R ROHS COMPLIANT: YES

Part	Voltage - Rated	Features	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max)	Package / Case	Applications	Mounting Type
TAIYO YUDEN GMK316SD104JL-T	35 V	Low Distortion	0.063 in	1.6 mm	0.126 "	3.2 mm	5 %	100000 pF	-55 °C	125 °C	0.071 "	1.8 mm	1206 (3216 Metric)	General Purpose	MLCC, Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

0.1 µF ±5% 35V Ceramic Capacitor 1206 (3216 Metric)
