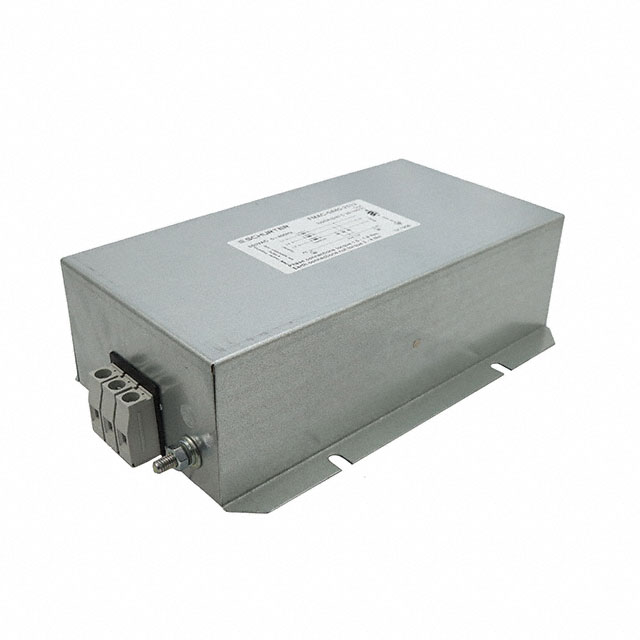

FMAC-0A40-2513

Active

SCHURTER Inc.

LINE FILTER 550VAC 25A CHASSIS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FMAC-0A40-2513

Active

SCHURTER Inc.

LINE FILTER 550VAC 25A CHASSIS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FMAC-0A40-2513	FMAC Series

Applications	General Purpose	Photovoltaic Inverter, Power Drive Systems, Inverters, General Purpose
Approval Agency	cURus, VDE, ENEC	cURus, VDE, ENEC
Configuration	Single Stage	Single Stage
Current	25 A	8 - 550 A
Filter Type	Three Phase (Delta)	Three Phase (Delta)
Frequency - Operating [Max]	60 Hz	60 Hz
Frequency - Operating [Min]	50 Hz	50 Hz
Inductance	200 µH	1 - 700 µH
Mounting Type	Chassis Mount	Chassis Mount, DIN Rail
Operating Temperature [custom]	100 °C, -25 °C	-25 - 100 °C
Termination Style	Terminal Block	Terminal Block, Terminal Post
Voltage - Rated AC	550 V	480 - 550 V
Voltage - Rated AC	-	520 V
Voltage - Rated AC	-	480 V

FMAC Series

LINE FILTER 480V/520VAC 64A CHAS

Part	Applications	Approval Agency	Inductance	Filter Type	Voltage - Rated AC [Max]	Voltage - Rated AC [Min]	Mounting Type	Termination Style	Operating Temperature [custom]	Configuration	Frequency - Operating [Max]	Frequency - Operating [Min]	Current	Voltage - Rated AC
SCHURTER Inc. FMAC-0934-6410L	Photovoltaic Inverter	cURus, ENEC, VDE	600 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	64 A
SCHURTER Inc. FMAC-091G-H210	Inverters, Power Drive Systems	cURus, ENEC, VDE	480 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	150 A	480 V
SCHURTER Inc. FMAC-0956-H312I	Photovoltaic Inverter	cURus, ENEC, VDE	300 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	250 A
SCHURTER Inc. FMAC-0A27-1613	General Purpose	cURus, ENEC, VDE	200 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	16 A	550 V
SCHURTER Inc. FMAC-091C-1610	Inverters, Power Drive Systems	cURus, ENEC, VDE	550 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	16 A	480 V
SCHURTER Inc. FMAC-091D-5010	Inverters, Power Drive Systems	cURus, ENEC, VDE	650 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	50 A	480 V
SCHURTER Inc. FMAC-0934-3610	Photovoltaic Inverter	cURus, ENEC, VDE	1.5 mH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	36 A
SCHURTER Inc. FMAC-0956-H350	Photovoltaic Inverter	cURus, ENEC, VDE	300 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	250 A
SCHURTER Inc. FMAC-0957-H650	Photovoltaic Inverter	cURus, ENEC, VDE	200 µH	Three Phase (Delta)	520 V	480 V	Chassis Mount	Terminal Post	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	550 A
SCHURTER Inc. FMAC-0A38-3213	General Purpose	cURus, ENEC, VDE	200 µH	Three Phase (Delta)			Chassis Mount	Terminal Block	-25 °C, 100 °C	Single Stage	60 Hz	50 Hz	32 A	550 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 367.16

Description

General part information

FMAC Series

Three Phase (Delta) EMC/EMI Line Filter 25 A 550V 50/60Hz Single Stage Terminal Block

Documents

Technical documentation and resources
