9W1TG48P0H61
ActiveSanyo Denki America Inc.

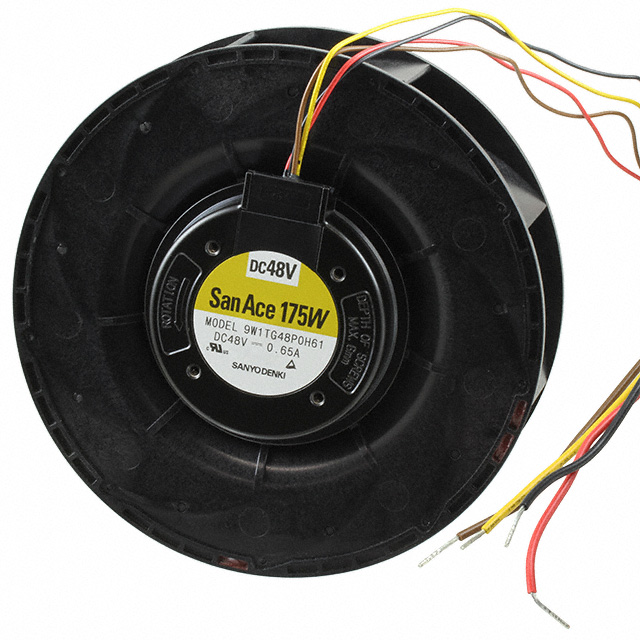

FAN IMP MTRZD 175X69MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
9W1TG48P0H61
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 175X69MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9W1TG48P0H61 |
|---|---|
| Air Flow | 318 CFM |
| Air Flow | 8.9 m³/min |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 650 mA |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach), PWM Control |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 64 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 31.2 W |
| RPM | 3100 RPM |
| Size / Dimension [diameter] | 175 mm Dia |
| Static Pressure | 358.9 Pa |
| Static Pressure | 1.441 in H2O |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 60 V |
| Voltage Range [Min] | 36 VDC |
| Weight | 771.1 g |
| Weight | 1.7 lbs |
| Width [x] | 69 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 225.33 | |
| 12 | $ 207.54 | |||
| 30 | $ 194.20 | |||
Description
General part information
9W1TG48 Series
Fan Motorized Impellers 48VDC Round - 175mm Dia Ball 318.0 CFM (8.90mł/min) 4 Wire Leads
