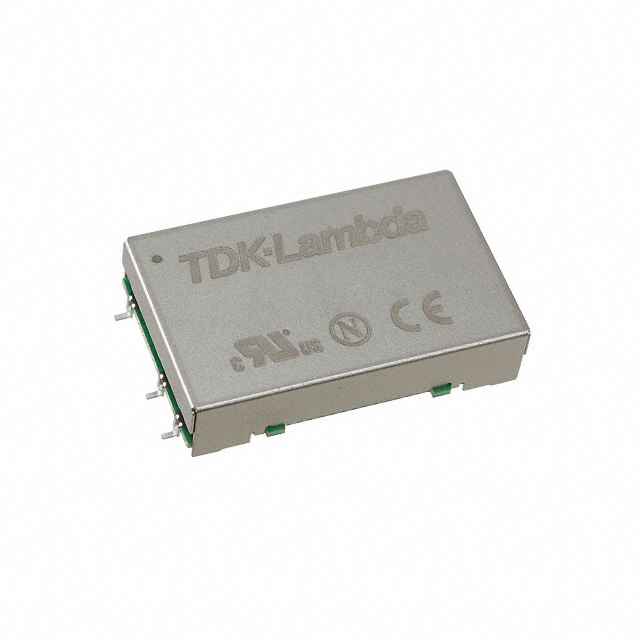

CC30-2415SRH-E

Active

TDK-LAMBDA

DC-DC CONV, ISO POL, 1 O/P, 30W, 2A, 15V

Search across all available documentation for this part.

Active

TDK-LAMBDA

DC-DC CONV, ISO POL, 1 O/P, 30W, 2A, 15V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 1 Output 15V 2A 18V - 36V Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	CC30-2415SRH-E	CC30-2415 Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active Low, Enable	Active Low, Enable
Current - Output (Max) [Max]	2 A	2 A
Efficiency	89 %	89 %
Features	OCP, OVP, Remote On/Off	OCP, OVP, Remote On/Off
Mounting Type	Surface Mount	Through Hole, Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	17 Leads, 20-SMD Module	20-DIP Module, 17 Leads, 17 Leads, 20-SMD Module
Power (Watts)	30 W	30 W
Size / Dimension [x]	38.4 mm	38.4 mm
Size / Dimension [x]	1.51 in	1.51 in
Size / Dimension [y]	1.32 in	1.32 in
Size / Dimension [y]	33.5 mm	33.5 mm
Size / Dimension [z]	8.3 mm	8.3 mm
Size / Dimension [z]	0.33 in	0.33 in
Type	Isolated Module	Isolated Module
Voltage - Input (Max) [Max]	36 V	36 V
Voltage - Input (Min) [Min]	18 V	18 V
Voltage - Isolation	1000 V	1000 V
Voltage - Output 1	15 V	15 V

ISOLATED THROUGH HOLE DC/DC CONVERTER, ITE, DIP, 2:1, 30 W, 1 OUTPUT, 15 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output (Max) [Max]	Control Features	Voltage - Output 1	Type	Voltage - Isolation	Number of Outputs	Package / Case	Power (Watts)	Voltage - Input (Max) [Max]	Voltage - Input (Min) [Min]	Mounting Type	Applications	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Efficiency	Features
TDK-LAMBDA CC30-2415SFP-E	85 °C	-40 °C	2 A	Active Low, Enable	15 V	Isolated Module	1000 V	1	20-DIP Module, 17 Leads	30 W	36 V	18 V	Through Hole	ITE (Commercial)	1.32 in	38.4 mm	1.51 in	8.3 mm	0.33 in	33.5 mm	89 %
TDK-LAMBDA CC30-2415SFH-E	85 °C	-40 °C	2 A	Active Low, Enable	15 V	Isolated Module	1000 V	1	20-DIP Module, 17 Leads	30 W	36 V	18 V	Through Hole	ITE (Commercial)	1.32 in	38.4 mm	1.51 in	8.3 mm	0.33 in	33.5 mm	89 %
TDK-LAMBDA CC30-2415SRH-E	85 °C	-40 °C	2 A	Active Low, Enable	15 V	Isolated Module	1000 V	1	17 Leads, 20-SMD Module	30 W	36 V	18 V	Surface Mount	ITE (Commercial)	1.32 in	38.4 mm	1.51 in	8.3 mm	0.33 in	33.5 mm	89 %	OCP, OVP, Remote On/Off
