02DB-6S
ActiveJST Sales America Inc.
CONN WIRE IDC 2POS 24-28AWG PCB
Deep-Dive with AI
Search across all available documentation for this part.
02DB-6S
ActiveJST Sales America Inc.
CONN WIRE IDC 2POS 24-28AWG PCB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 02DB-6S | 02DB Series |
|---|---|---|
| Board-Side Pitch | 2.5 mm | 2.5 mm |
| Board-Side Pitch | 0.098 in | 0.098 in |
| Cable Pitch | 2.5 mm | 2.5 mm |
| Cable Pitch | 0.098 in | 0.098 in |
| Cable Termination | IDC | IDC |
| Color | White | Black, Green, White |
| Connector Type | Individual Wires | Individual Wires |
| Contact Finish | Tin-Lead | Tin-Lead |
| Features | Closed End | Closed End |
| Mounting Type | Through Hole, Press-Fit | Through Hole, Press-Fit |
| Number of Positions | 2 | 2 |
| Number of Positions Loaded | All | All |
| Number of Rows | 1 | 1 |
| Wire Gauge | Stranded | Stranded |
| Wire Gauge [Max] | 28 AWG | 28 AWG |
| Wire Gauge [Min] | 24 AWG | 24 AWG |
02DB Series
CONN WIRE IDC 2POS 24-28AWG PCB
| Part | Connector Type | Wire Gauge [Max] | Wire Gauge | Wire Gauge [Min] | Board-Side Pitch | Board-Side Pitch | Features | Mounting Type | Color | Number of Rows | Cable Termination | Contact Finish | Number of Positions | Cable Pitch | Cable Pitch | Number of Positions Loaded |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. 02DB-4K(LF) | Individual Wires | 28 AWG | Stranded | 24 AWG | 2.5 mm | 0.098 in | Closed End | Through Hole, Press-Fit | Black | 1 | IDC | Tin-Lead | 2 | 2.5 mm | 0.098 in | All |
JST Sales America Inc. 02DB-8M(LF) | Individual Wires | 28 AWG | Stranded | 24 AWG | 2.5 mm | 0.098 in | Closed End | Through Hole, Press-Fit | Green | 1 | IDC | Tin-Lead | 2 | 2.5 mm | 0.098 in | All |
JST Sales America Inc. 02DB-6S | Individual Wires | 28 AWG | Stranded | 24 AWG | 2.5 mm | 0.098 in | Closed End | Through Hole, Press-Fit | White | 1 | IDC | Tin-Lead | 2 | 2.5 mm | 0.098 in | All |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1000 | $ 0.10 | |
Description
General part information
02DB Series

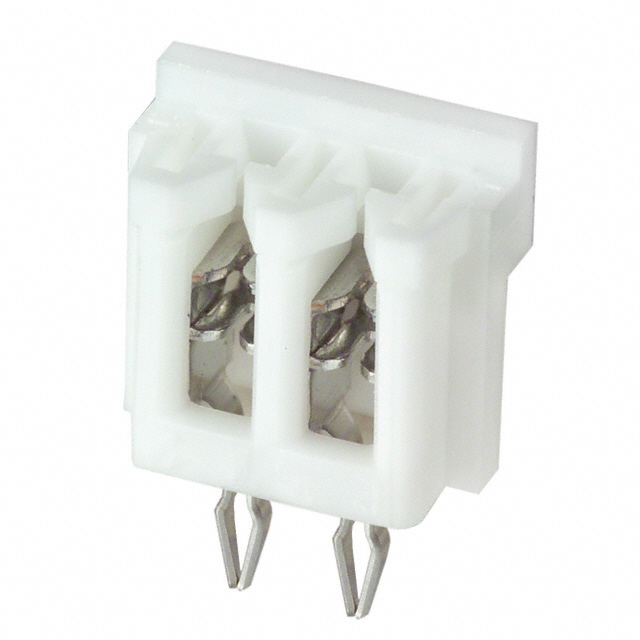

2 Position Individual Wires Connector White IDC 24-28 AWG, Stranded Through Hole, Press-Fit
