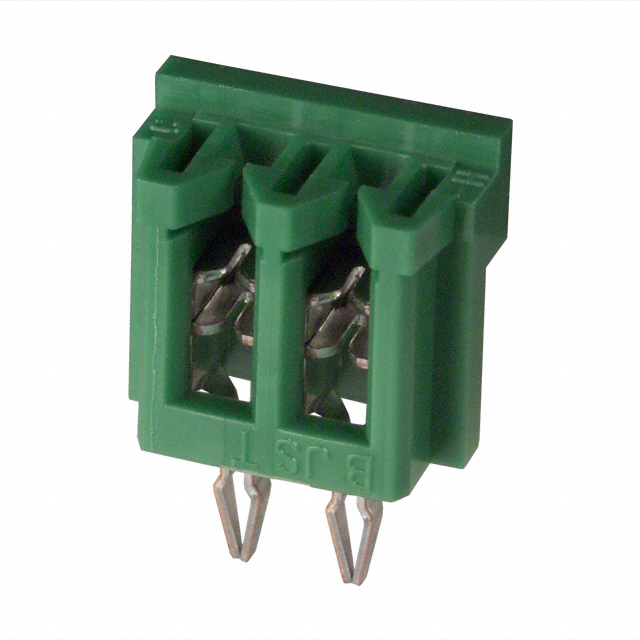

02DB-8M(LF)

Active

JST Sales America Inc.

CONN WIRE IDC 2POS 24-28AWG PCB

Search across all available documentation for this part.

Active

JST Sales America Inc.

CONN WIRE IDC 2POS 24-28AWG PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.10

General part information

2 Position Individual Wires Connector Green IDC 24-28 AWG, Stranded Through Hole, Press-Fit

Part	Connector Type	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Board-Side Pitch	Board-Side Pitch	Features	Mounting Type	Color	Number of Rows	Cable Termination	Contact Finish	Number of Positions	Cable Pitch	Cable Pitch	Number of Positions Loaded
JST Sales America Inc. 02DB-4K(LF)	Individual Wires	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	Closed End	Through Hole, Press-Fit	Black	1	IDC	Tin-Lead	2	2.5 mm	0.098 in	All
JST Sales America Inc. 02DB-8M(LF)	Individual Wires	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	Closed End	Through Hole, Press-Fit	Green	1	IDC	Tin-Lead	2	2.5 mm	0.098 in	All
JST Sales America Inc. 02DB-6S	Individual Wires	28 AWG	Stranded	24 AWG	2.5 mm	0.098 in	Closed End	Through Hole, Press-Fit	White	1	IDC	Tin-Lead	2	2.5 mm	0.098 in	All
