74ALVC16244APAG
Obsolete3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
74ALVC16244APAG
Obsolete3.3V CMOS 16-BIT BUFFER/DRIVER WITH 3-STATE OUTPUTS
Description
General part information
74ALVC16244A Series

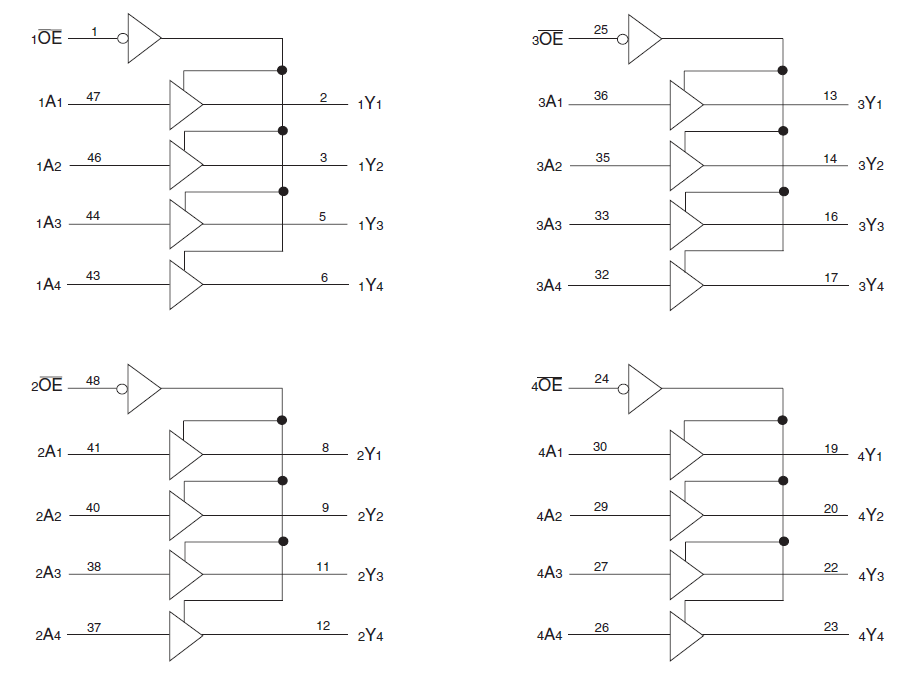

The 74ALVC16244 16-bit buffer/driver is designed specifically to improve the performance and density of 3-state memory address drivers, clock drivers, and bus-oriented receivers and transmitters. The device can be used as four 4-bit buffers, two 8-bit buffers, or one 16-bit buffer. The 74ALVC16244 operates at -40C to +85C
Technical Specifications
Parameters and characteristics for this part
| Specification | 74ALVC16244APAG |
|---|---|
| Current - Output High | 24 mA |
| Current - Output Low | 24 mA |
| Logic Type | Buffer, Non-Inverting |
| Mounting Type | Surface Mount |
| Number of Bits per Element | 4 bits |
| Number of Elements | 4 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Output Type | 3-State |
| Package Length | 0.24 in |
| Package Name | 48-TSSOP, 48-TFSOP |
| Package Width | 6.1 mm |
| Voltage - Supply (Maximum) | 3.6 V |
| Voltage - Supply (Minimum) | 2.7 V |
