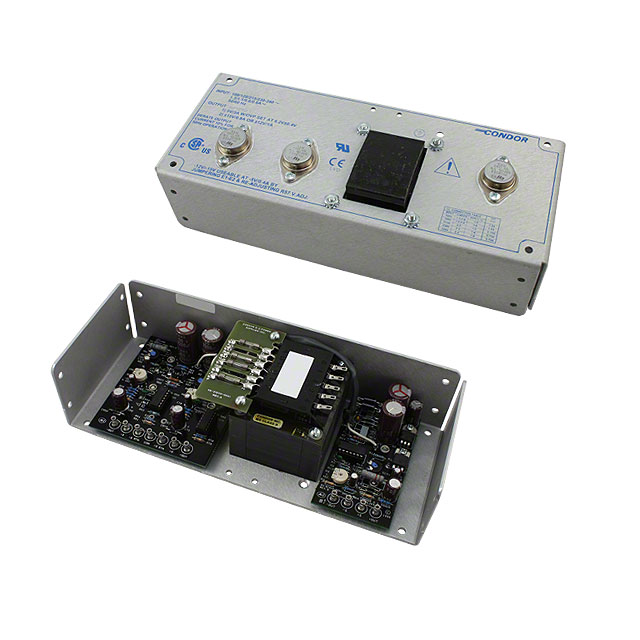

MBAA40W-AG
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5V +/-12V 39W
Deep-Dive with AI
Search across all available documentation for this part.
MBAA40W-AG
ObsoleteSL POWER / Advanced Energy
AC/DC CONVERTER 5V +/-12V 39W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MBAA40W-AG |
|---|---|
| Applications | Medical |
| Approval Agency | cURus, CE, TUV |
| Current - Output 1 | 3 A |
| Current - Output 2 | 1 A |
| Efficiency | 55 % |
| Features | Remote Sense, Universal Input, Adjustable Output |
| Mounting Type | Chassis Mount |
| Number of Outputs | 3 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 39 W |
| Size / Dimension [x] | 10.25 " |
| Size / Dimension [x] | 260.4 mm |
| Size / Dimension [y] | 101.6 mm |
| Size / Dimension [y] | 4 " |
| Size / Dimension [z] | 63.5 mm |
| Size / Dimension [z] | 2.5 in |
| Type | Linear |
| Voltage - Input [Max] | 240 VAC |
| Voltage - Input [Min] | 100 VAC |
| Voltage - Output 1 | 5 V |
| Voltage - Output 2 | 12 V |
| Voltage - Output 3 | -12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MBAA40W Series
Linear AC DC Converters 3 Output 5V 12V -12V 100 ~ 240 VAC Input
Documents
Technical documentation and resources
No documents available
