General part information

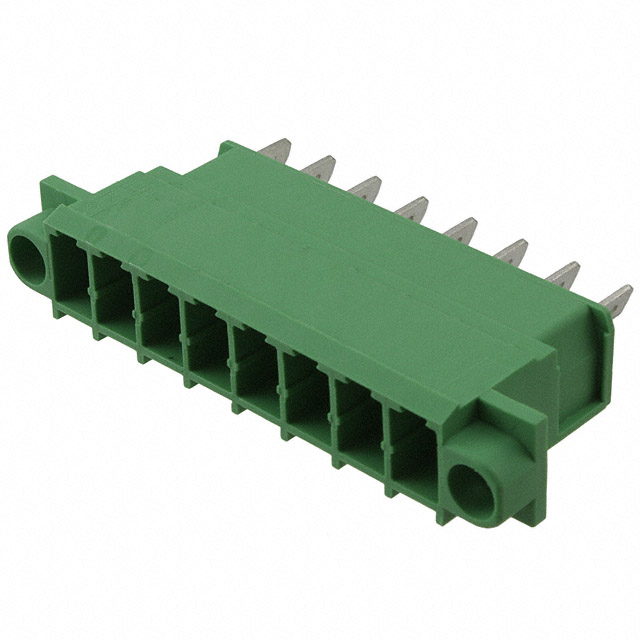

Pluggable Terminal Blocks 2 Pos 7.62mm pitch Feed Through Header
Technical documentation and resources
Parameters and characteristics commom to parts in this series
| Specification | 1861219 | DFK-PC Series |
|---|---|---|
| Color | Green | Green |
| Current - UL | 20 A | 20 - 55 A |
| Features | Threaded Mating Lock | Shield Connection Front Side, Threaded Mating Lock |
| Front Panel Wire Connection | Header, Male Pins | Header, Male Pins |
| Number of Levels | 1 | 1 |
| Panel Mount Type | Screw Mount - Front Flange | 2 Piece, Snap Lock - Front Flange, Screw Mount - Front Flange |
| Panel Thickness | - | 0.118 in |
| Panel Thickness | - | 1 - 3 mm |
| Panel Thickness | - | 0.039 in |
| Pitch [x] | 0.3 in | 0.3 - 0.4 in |
| Pitch [x] | 7.62 mm | 7.62 - 10.16 mm |
| Positions Per Level | 8 | 2 - 8 |
| Rear Panel Wire Connection | - | Bolt/Screw Clamp, Wire Entry Parallel to Panel |
| Voltage - UL | 300 V | 300 V |
| Width [x] | 2.999 in | 1.963 - 3.965 in |
| Width [x] | 76.18 mm | 49.86 - 100.72 mm |
| Wire Gauge | - | 6 - 8 AWG |
| Wire Gauge | - | 20 - 24 AWG |
Pluggable Terminal Blocks 2 Pos 7.62mm pitch Feed Through Header
| Part | Number of Levels | Front Panel Wire Connection | Current - UL | Wire Gauge [Min] | Wire Gauge [Max] | Rear Panel Wire Connection | Panel Thickness [Max] | Panel Thickness | Panel Thickness [Min] | Panel Mount Type | Width [x] | Width [x] | Positions Per Level | Pitch [x] | Pitch [x] | Color | Features | Voltage - UL |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Phoenix Contact 1716632 | 1 | Header, Male Pins | 41 A | 8 AWG | 24 AWG | Bolt/Screw Clamp, Wire Entry Parallel to Panel | 0.118 in | 1 mm, 3 mm | 0.039 in | 2 Piece, Snap Lock - Front Flange | 2.563 in | 65.1 mm | 4 | 0.3 in | 7.62 mm | Green | Shield Connection Front Side, Threaded Mating Lock | |
Phoenix Contact 1703438 | 1 | Header, Male Pins | 55 A | 6 AWG | 20 AWG | Bolt/Screw Clamp, Wire Entry Parallel to Panel | 0.118 in | 1 mm, 3 mm | 0.039 in | 2 Piece, Snap Lock - Front Flange | 3.965 in | 100.72 mm | 8 | 0.4 in | 10.16 mm | Green | ||
Phoenix Contact 1861219 | 1 | Header, Male Pins | 20 A | Screw Mount - Front Flange | 2.999 in | 76.18 mm | 8 | 0.3 in | 7.62 mm | Green | Threaded Mating Lock | 300 V | ||||||
Phoenix Contact 1716616 | 1 | Header, Male Pins | 41 A | 8 AWG | 24 AWG | Bolt/Screw Clamp, Wire Entry Parallel to Panel | 0.118 in | 1 mm, 3 mm | 0.039 in | 2 Piece, Snap Lock - Front Flange | 1.963 in | 49.86 mm | 2 | 0.3 in | 7.62 mm | Green | Shield Connection Front Side, Threaded Mating Lock |
