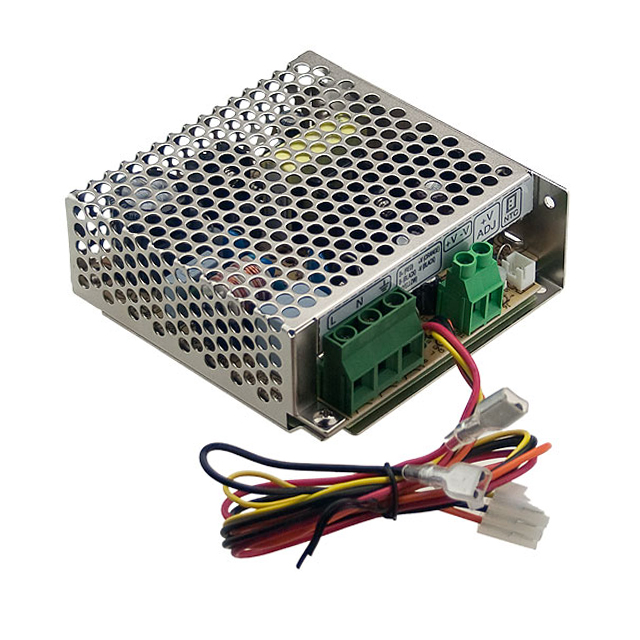

SCP-35-12

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 36W

Search across all available documentation for this part.

Active

MEAN WELL USA Inc.

AC/DC CONVERTER 13.8V 36W

Technical Specifications

Parameters and characteristics for this part

Specification	SCP-35-12

Applications	ITE (Commercial)
Approval Agency	CB, cURus, CE
Current - Output 1	2.6 A
Efficiency	83 %
Features	Adjustable Output, Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	36 W
Size / Dimension [x]	99 mm
Size / Dimension [x]	3.9 "
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	36 mm
Size / Dimension [z]	1.42 in
Type	Enclosed
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	85 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	13.8 V

Part	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Type	Number of Outputs	Features	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Minimum Load Required	Efficiency	Current - Output 1	Voltage - Isolation	Voltage - Output 1	Voltage - Input [Min]	Voltage - Input [Max]	Mounting Type
MEAN WELL USA Inc. SCP-35-12	CB CE cURus	60 °C	-20 °C	Enclosed	1	Adjustable Output Universal Input	ITE (Commercial)	99 mm	3.82 in	36 mm	3.9 "	97 mm	1.42 in	36 W		83 %	2.6 A	3000 V	13.8 V	85 VAC 120 VDC	264 VAC 370 VDC	Chassis Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 1 Output 13.8V 85 ~ 264 VAC, 120 ~ 370 VDC Input
