TE Connectivity Potter & Brumfield Relays

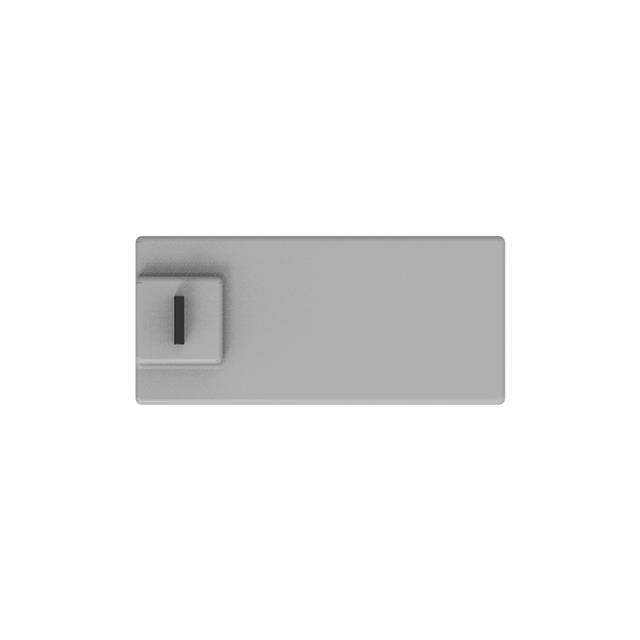

RELAY GEN PURPOSE SPST 16A 12V

Search across all available documentation for this part.

Obsolete

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE SPST 16A 12V

Technical Specifications

Parameters and characteristics for this part

Specification	1415898-9

Approval Agency	cURus, CQC, VDE, CSA
Coil Current	50 mA
Coil Insulation	Class F
Coil Resistance	240 Ohms
Coil Type	Latching, Dual Coil
Coil Voltage	12 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Tungsten (W), Silver Tin Oxide (AgSnO)
Contact Rating (Current)	16 A
Load - Max Switching	6400 VA
Mounting Type	Through Hole
Must Operate Voltage	8.4 VDC
Operate Time	10 ms
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Release Time	10 ms
Seal Rating	Sealed - Flux Protection
Switching Voltage	480 VAC
Termination Style	PC Pin

Part	Coil Resistance	Mounting Type	Approval Agency	Must Operate Voltage	Load - Max Switching	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Release Time	Coil Current	Relay Type	Contact Material	Coil Type	Coil Insulation	Operate Time	Switching Voltage	Coil Voltage	Seal Rating	Contact Rating (Current)	Termination Style	Must Release Voltage	Switching Voltage [Max]
TE Connectivity Potter & Brumfield Relays 1415898-9	240 Ohms	Through Hole	CQC CSA cURus VDE	8.4 VDC	6400 VA	-40 °C	105 ░C	SPST-NO (1 Form A)	10 ms	50 mA	General Purpose	Silver Tin Oxide (AgSnO) Tungsten (W)	Latching Dual Coil	Class F	10 ms	480 VAC	12 VDC	Sealed - Flux Protection	16 A	PC Pin
TE Connectivity Potter & Brumfield Relays 4-1415898-5	21 Ohms	Through Hole	CQC CSA cURus VDE	2.1 VDC	6400 VA	-10 °C	85 °C	SPST-NO (1 Form A)	5 ms	142.9 mA	General Purpose	Silver Tin Oxide (AgSnO) Tungsten (W)	Latching Single Coil	Class F	10 ms			Sealed - Flux Protection	16 A	PC Pin	1.7 VDC	400 VAC
