Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6986FTR | A6986F Series |
|---|---|---|
| - | - | |
| Current - Output | 1.5 A | 1.5 A |
| Frequency - Switching [Max] | 2 MHz | 2 MHz |
| Frequency - Switching [Min] | 250 kHz | 250 kHz |
| Function | Step-Down | Step-Down |
| Grade | Automotive | Automotive |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Outputs | 1 | 1 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Output Type | - | 1.81 mOhm |

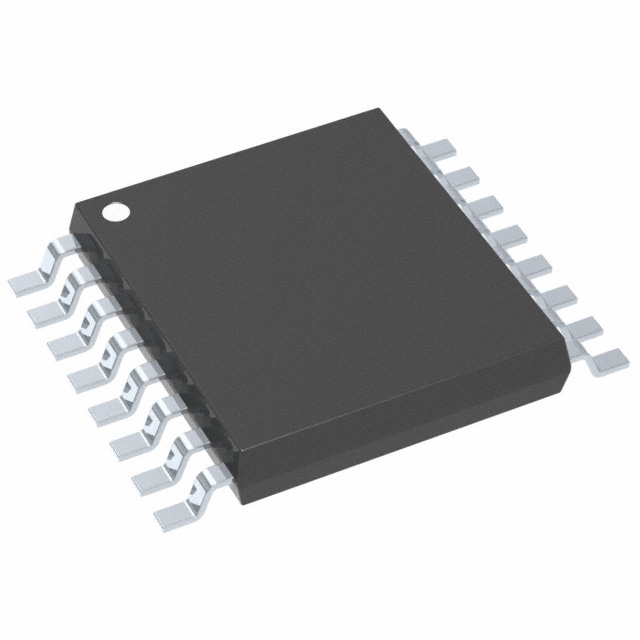

| Package / Case | 16-PowerTSSOP | 16-PowerTSSOP |
| Package / Case | 0.173 in, 4.4 mm Width | 0.173 - 4.4 in |
| Qualification | AEC-Q100 | AEC-Q100 |
| Supplier Device Package | 16-HTSSOP | 16-HTSSOP |
| Synchronous Rectifier | True | True |
| Topology | Buck | Buck |
| Voltage - Input (Max) [Max] | 38 V | 38 V |
| Voltage - Input (Min) [Min] | 4 V | 4 V |
| Voltage - Output (Max) | 38 V | 38 V |
| Voltage - Output (Min/Fixed) | 0.85 V | 0.85 - 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
A6986F Series
Automotive 38 V, 1.5 A synchronous step-down switching regulator with 30 µA quiescent current
| Part | Output Type | Supplier Device Package | Voltage - Output (Min/Fixed) | Synchronous Rectifier | Package / Case | Package / Case | Voltage - Input (Max) [Max] | Frequency - Switching [Max] | Frequency - Switching [Min] | Operating Temperature [Max] | Operating Temperature [Min] | Grade | Qualification | Number of Outputs | Voltage - Input (Min) [Min] | Output Configuration | Mounting Type | Current - Output | Function | Topology | Voltage - Output (Max) | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics A6986F3V3 | 1.81 mOhm | 16-HTSSOP | 3.3 V | 16-PowerTSSOP | 0.173 in, 4.4 mm Width | 38 V | 2 MHz | 250 kHz | 150 °C | -40 °C | Automotive | AEC-Q100 | 1 | 4 V | Positive | Surface Mount | 1.5 A | Step-Down | Buck | |||
STMicroelectronics A6986F5VTR | ||||||||||||||||||||||
STMicroelectronics A6986F3V3 | ||||||||||||||||||||||
STMicroelectronics A6986FTR | 16-HTSSOP | 0.85 V | 16-PowerTSSOP | 0.173 in, 4.4 mm Width | 38 V | 2 MHz | 250 kHz | 150 °C | -40 °C | Automotive | AEC-Q100 | 1 | 4 V | Positive | Surface Mount | 1.5 A | Step-Down | Buck | 38 V | Adjustable | ||
STMicroelectronics A6986FTR | ||||||||||||||||||||||
STMicroelectronics A6986F3V3TR | ||||||||||||||||||||||
STMicroelectronics A6986F3V3 | ||||||||||||||||||||||
STMicroelectronics A6986F5V | ||||||||||||||||||||||
STMicroelectronics A6986F5V | ||||||||||||||||||||||
STMicroelectronics A6986F3V3TR |
Description
General part information
A6986F Series
The A6986F automotive grade device is a step-down monolithic switching regulator able to deliver up to 1.5 A DC. The output voltage adjustability ranges from 0.85 V to VIN. The 100% duty cycle capability and the wide input voltage range meet the cold crank and load dump specifications for automotive systems. The "Low Consumption Mode" (LCM) is designed for applications active during car parking, so it maximizes the efficiency at light-load with controlled output voltage ripple. The "Low Noise Mode" (LNM) makes the switching frequency constant and minimizes the output voltage ripple overload current range, meeting the low noise application specification like car audio. The output voltage supervisor manages the reset phase for any digital load (μC, FPGA). The RST open collector output can also implement output voltage sequencing during the power-up phase. The synchronous rectification, designed for high efficiency at medium - heavy load, and the high switching frequency capability make the size of the application compact. Pulse by pulse current sensing on both power elements implements an effective constant current protection.
