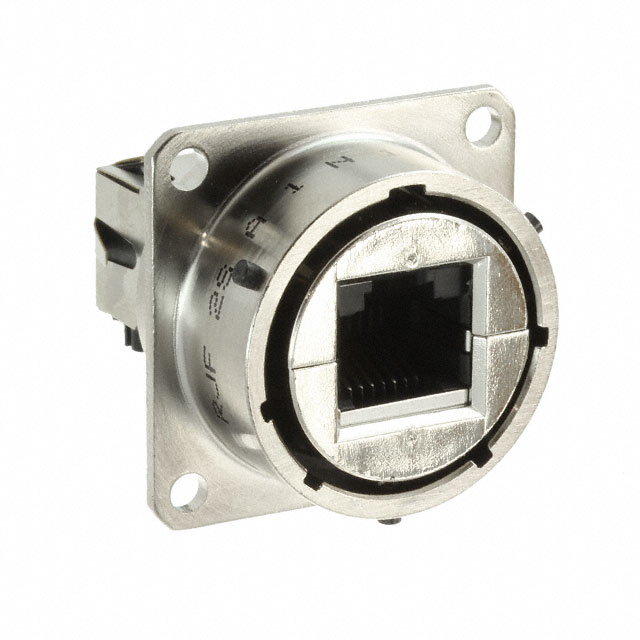

RJF2SA1N

Active

Amphenol Socapex

CONN MOD ADAPTER 8P8C TO PCB

Search across all available documentation for this part.

Active

Amphenol Socapex

CONN MOD ADAPTER 8P8C TO PCB

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Modular Adapter Connector Jack, 8p8c (RJ45) To PCB Cat5e Unshielded

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	RJF2SA1N	RJF2S Series

Connector Type	-	Jack
Convert From (Adapter End)	Jack, 8p8c (RJ45)	Jack, 8p8c (RJ45)
Convert To (Adapter End)	PCB	PCB
Features	Circular Bayonet Coupling	Circular Bayonet Coupling
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
LED Color	-	Does Not Contain LED
Mounting Type	Panel Mount, Square Flange	Panel Mount, Square Flange
Number of Ports	-	1
Number of Positions/Contacts	-	8p8c (RJ45, Ethernet)
Number of Rows	-	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	-	Straight
Ratings	Cat5e	Cat5e
Shell Material, Finish	Nickel Plated, Metal	Nickel Plated, Metal, Olive Drab Cadmium Plated
Shielding	Unshielded	Unshielded
Tab Direction	-	User Selectable
Termination	-	PC Board, Solder
Type	Adapter	Adapter

CONN MOD ADAPTER 8P8C TO PCB

Part	Features	Ratings	Convert From (Adapter End)	Shielding	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Convert To (Adapter End)	Type	Ingress Protection	Shell Material, Finish	Orientation	Number of Ports	Tab Direction	Connector Type	Number of Positions/Contacts	Termination	Number of Rows	LED Color
Amphenol Socapex RJF2SA1N	Circular Bayonet Coupling	Cat5e	Jack, 8p8c (RJ45)	Unshielded	85 °C	-40 °C	Panel Mount, Square Flange	PCB	Adapter	IP67 - Dust Tight, Waterproof	Metal, Nickel Plated
Amphenol Socapex RJF2SA1G	Circular Bayonet Coupling	Cat5e	Jack, 8p8c (RJ45)	Unshielded	85 °C	-40 °C	Panel Mount, Square Flange	PCB	Adapter	IP67 - Dust Tight, Waterproof	Metal, Olive Drab Cadmium Plated
Amphenol Socapex RJF2SA1GSCC			Jack, 8p8c (RJ45)		85 °C	-40 °C		PCB
Amphenol Socapex RJF2SA5B	Circular Bayonet Coupling	Cat5e		Unshielded	85 °C	-40 °C	Panel Mount, Square Flange			IP67 - Dust Tight, Waterproof		Straight	1	User Selectable	Jack	8p8c (RJ45, Ethernet)	PC Board, Solder	1	Does Not Contain LED
