Q-0201B0001.75M

Active

Amphenol Custom Cable

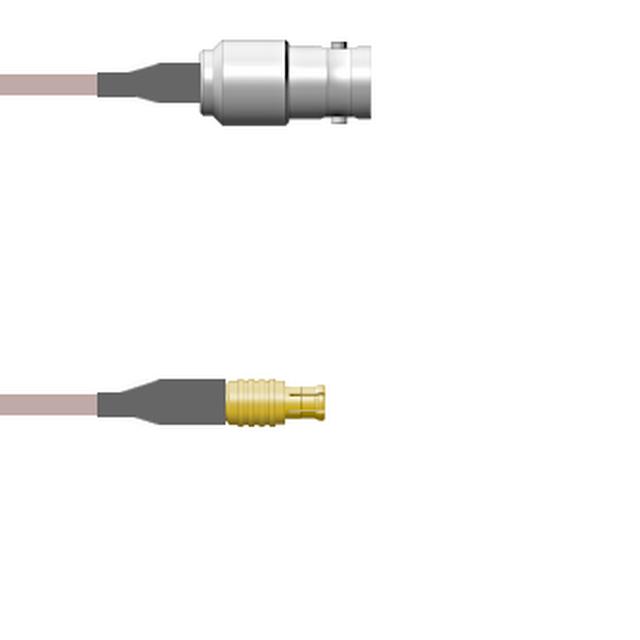

CBL ASSY BNC-MCX JACK-PLG 29.53"

Deep-Dive with AI

Search across all available documentation for this part.

Q-0201B0001.75M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-PLG 29.53"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	Q-0201B0001.75M	Q-0201B0 Series

1st Connector	BNC Jack	BNC Jack
1st Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
1st Contact Gender	Female	Female
2nd Connector	MCX Plug	MCX Plug
2nd Connector Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
2nd Contact Gender	Male	Male
Cable Type	RG-178	RG-178
Color	Copper	Copper
Features	Shielded	Shielded
Frequency - Max [Max]	4 GHz	4 GHz
Length	29.53 "	3 - 118.1 in
Length	750 mm	1 - 1200 m
Length	-	3.3 - 9.8 '
Length	-	457.2 mm
Length	-	250 - 457.2 mm
Length	-	9.843 "
Overall Impedance	50 Ohms	50 Ohms
Style	BNC to MCX	BNC to MCX

Q-0201B0 Series

CBL ASSY BNC-MCX JACK-PLUG 8.2'

Part	Color	Cable Type	Features	Style	2nd Connector	2nd Contact Gender	1st Connector	Length	Length	Length	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	Overall Impedance	2nd Connector Mounting Type	Length [x]	Length [x]
Amphenol Custom Cable Q-0201B00012.5M	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack	8.2 '	98.4 in	2.5 m	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001.75M	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack		29.53 "	750 mm	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001001M	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack	3.3 ft	39.4 in	1 m	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001003M	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack	9.8 '	118.1 in	3 m	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001048i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack	4 ft	48 in	1200 mm	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001009i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack		9 "	228.6 mm	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001060i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack	5 ft	5 '	1.5 m	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001018i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack				4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)	457.2 mm	457.2 mm
Amphenol Custom Cable Q-0201B0001006i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack		6 in	152.4 mm	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)
Amphenol Custom Cable Q-0201B0001036i	Copper	RG-178	Shielded	BNC to MCX	MCX Plug	Male	BNC Jack		36 in	91.44 cm	4 GHz	Free Hanging (In-Line)	Female	50 Ohms	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 75.02
		25	$ 73.57
		50	$ 72.11
		100	$ 70.65
		250	$ 69.20

Description

General part information

Q-0201B0 Series

Cable Assembly Coaxial BNC to MCX RG-178 29.53" (750.00mm)

Documents

Technical documentation and resources

No documents available
