3543

Active

Keystone Electronics

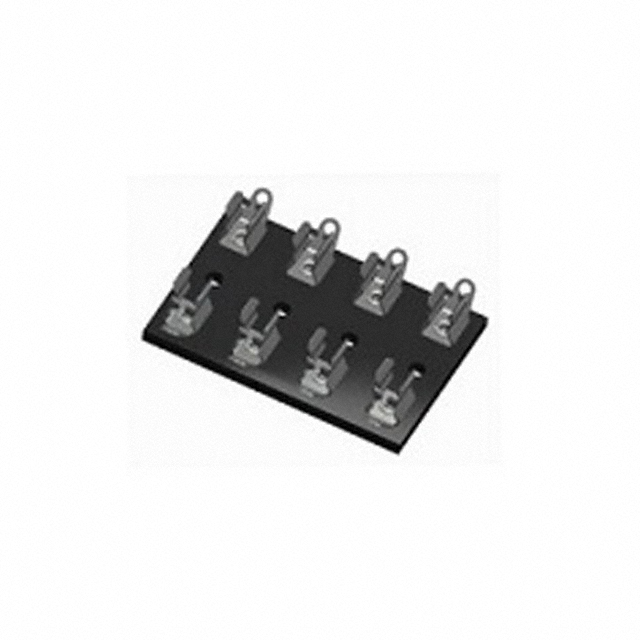

FUSE HOLDER 4-POLE 3AG FUSEBLOCK

Search across all available documentation for this part.

Active

Keystone Electronics

FUSE HOLDER 4-POLE 3AG FUSEBLOCK

Technical Specifications

Parameters and characteristics for this part

Specification	3543

Contact Finish	Nickel
Contact Material	Brass
Current Rating (Amps)	15 A
For Use With/Related Products	3AG, 1/4" x 1-1/4" (SFE-20)
Fuse Size [diameter]	0.25 "
Fuse Size [diameter]	6.35 mm
Fuse Size [x]	32 mm
Fuse Size [x]	1.26 in
Fuse Type	Cartridge
Fuseholder Type	Block
Mounting Type	Chassis Mount
Number of Circuits	4
Termination Style	Solder Lug
Voltage	500 V

Fuse Holder 4-POLE 3AG FUSEBLOCK

Part	Voltage	For Use With/Related Products	Number of Circuits	Contact Finish	Fuseholder Type	Fuse Type	Mounting Type	Current Rating (Amps)	Fuse Size [x]	Fuse Size [x]	Fuse Size [diameter]	Fuse Size [diameter]	Contact Material	Termination Style
Keystone Electronics 3543	500 V	1/4" x 1-1/4" (SFE-20) 3AG	4	Nickel	Block	Cartridge	Chassis Mount	15 A	32 mm	1.26 in	0.25 "	6.35 mm	Brass	Solder Lug

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Sager	N/A	1000	$ 5.78

General part information

Fuse Holder 4-POLE 3AG FUSEBLOCK
