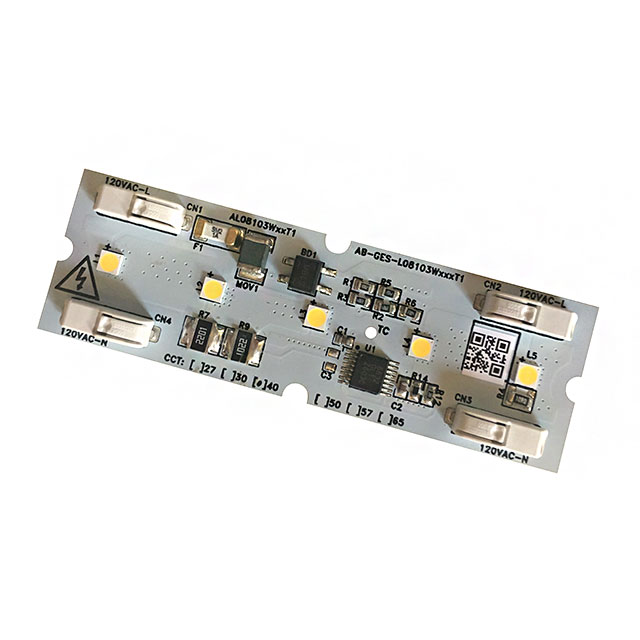

AB-GES-L08103W404T1
ActiveAmerican Bright Optoelectronics Corporation
LED ENG AB-GES WH LNR STRP 4000K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-GES-L08103W404T1
ActiveAmerican Bright Optoelectronics Corporation
LED ENG AB-GES WH LNR STRP 4000K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | AB-GES-L08103W404T1 | AB-GES Series |
|---|---|---|
| CCT (K) | 4000 K | 3000 - 6500 K |
| Color | Neutral, White | Neutral, White, Warm, Cool |
| Configuration | Linear Light Strip | Linear Light Strip, Round, Square, Plug and Play |
| CRI (Color Rendering Index) | 80 | 80 |
| Height | - | 1.6 - 18.7 mm |
| Lens Type | Flat | Flat, Tubular |
| Light Emitting Surface (LES) | - | 18.8 mm |
| Luminous Flux @ Current/Temperature | 280 lm | 280 - 2550 lm |
| Size / Dimension | - | 25.7 mm |
| Size / Dimension [x] | 76 mm | 40 - 569 mm |
| Size / Dimension [y] | 24 mm | 2.7 - 41.6 mm |
| Type | LED Engine | LED Engine, LED Module |
| Voltage - Forward (Vf) (Typ) | 120 VAC | 120 - 230 VAC |
AB-GES Series
LED ENG AB-GES WH LNR STRP 4000K
| Part | Color | Lens Type | CCT (K) | Type | Voltage - Forward (Vf) (Typ) | Configuration | Luminous Flux @ Current/Temperature | Size / Dimension [y] | Size / Dimension [x] | CRI (Color Rendering Index) | Size / Dimension [diameter] | Height [z] | Light Emitting Surface (LES) [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
American Bright Optoelectronics Corporation AB-GES-L15106W404T1 | Neutral, White | Flat | 4000 K | LED Engine | 120 VAC | Linear Light Strip | 630 lm | 24 mm | 150 mm | 80 | |||
American Bright Optoelectronics Corporation AB-GES-L08103W404T1 | Neutral, White | Flat | 4000 K | LED Engine | 120 VAC | Linear Light Strip | 280 lm | 24 mm | 76 mm | 80 | |||
American Bright Optoelectronics Corporation AB-GES-C02104W30NN2 | Warm, White | Flat | 3000 K | LED Engine | 120 VAC | Round | 300 lm | 80 | 25.7 mm | ||||
American Bright Optoelectronics Corporation AB-GES-S04124W30NN1 | Warm, White | Flat | 3000 K | LED Engine | 120 VAC | Square | 2100 lm | 40 mm | 40 mm | 80 | 1.6 mm | 18.8 mm | |
American Bright Optoelectronics Corporation AB-GES-L54108W304N3 | Warm, White | Flat | 3000 K | LED Engine | 120 VAC | Linear Light Strip | 880 lm | 20 mm | 542 mm | 80 | |||
American Bright Optoelectronics Corporation AB-GES-P28212W30BFT2 | Warm, White | Tubular | 3000 K | LED Engine | 230 VAC | Linear Light Strip, Plug and Play | 1000 lm | 2.7 mm | 304.8 mm | 80 | 17.5 mm | ||
American Bright Optoelectronics Corporation AB-GES-L27104W404N3 | Neutral, White | Flat | 4000 K | LED Engine | 120 VAC | Linear Light Strip | 500 lm | 20 mm | 271 mm | 80 | |||
American Bright Optoelectronics Corporation AB-GES-F56124W65BFT1 | Cool, White | Flat | 6500 K | LED Module | 120 VAC | Linear Light Strip, Plug and Play | 2550 lm | 41.6 mm | 569 mm | 80 | 18.7 mm | ||
American Bright Optoelectronics Corporation AB-GES-L28112W404T2 | Neutral, White | Flat | 4000 K | LED Engine | 120 VAC | Linear Light Strip | 1400 lm | 24 mm | 280 mm | 80 | |||
American Bright Optoelectronics Corporation AB-GES-L27204W404N3 | Neutral, White | Flat | 4000 K | LED Engine | 230 VAC | Linear Light Strip | 500 lm | 20 mm | 271 mm | 80 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 200 | $ 12.17 | |
Description
General part information
AB-GES Series
LED Lighting COBs Engines Modules LED Engine AB-GES White, Neutral Linear Light Strip
