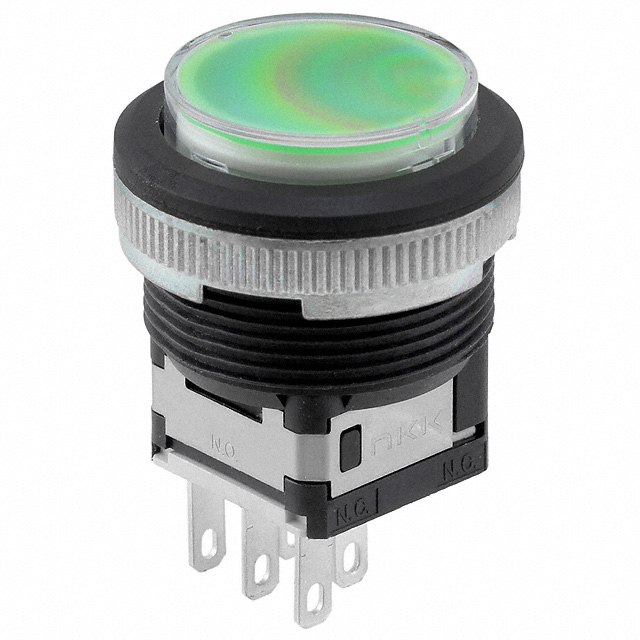

LB16WKW01-5F05-JF

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LB16WKW01-5F05-JF

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Clear
Current Rating (Amps)	3 A
Electrical Life	100000 Cycles
Illumination Type, Color	LED, Green
Illumination Voltage (Nominal)	5 VDC
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	22 mm
Switch Function	On-On
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB16WKW Series

Part	Circuit	Panel Cutout Dimensions [diameter]	Termination Style	Termination Style	Termination Style	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Current Rating (Amps)	Actuator Marking	Voltage Rating - DC	Mechanical Life	Actuator Type	Switch Function	Type	Ingress Protection	Voltage Rating - AC	Color - Actuator/Cap	Illumination Voltage (Nominal)	Illumination Type, Color
NKK Switches LB16WKW01	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	70 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Plunger for Cap	On-On	Standard	IP65 - Dust Tight Water Resistant	125 V
NKK Switches LB16WKW01-EJ	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	70 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Standard	IP65 - Dust Tight Water Resistant	125 V	Yellow
NKK Switches LB16WKW01-6G-JB	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear	3.6 VDC	Blue LED
NKK Switches LB16WKW01-5C24-JB	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear	24 V	LED Red
NKK Switches LB16WKW01-5D24-JD	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear	24 V	Amber LED
NKK Switches LB16WKW01-5C12-JC	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear (Red Filter/Diffuser)	12 VDC	LED Red
NKK Switches LB16WKW01-05-JF	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear	5 VAC/DC	Green Incandescent
NKK Switches LB16WKW01/CUL	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	70 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Plunger for Cap	On-On	Standard	IP65 - Dust Tight Water Resistant	125 V
NKK Switches LB16WKW01-5C24-JC	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear (Red Filter/Diffuser)	24 V	LED Red
NKK Switches LB16WKW01-5F05-JF	SPDT	22 mm	0.11 in	Quick Connect Solder	2.8 mm	Panel Mount Front	50 °C	-25 °C	100000 Cycles	3 A	No Marking	30 V	200000 Cycles	Button Round	On-On	Illuminated Standard	IP65 - Dust Tight Water Resistant	125 V	Clear	5 VDC	Green LED
