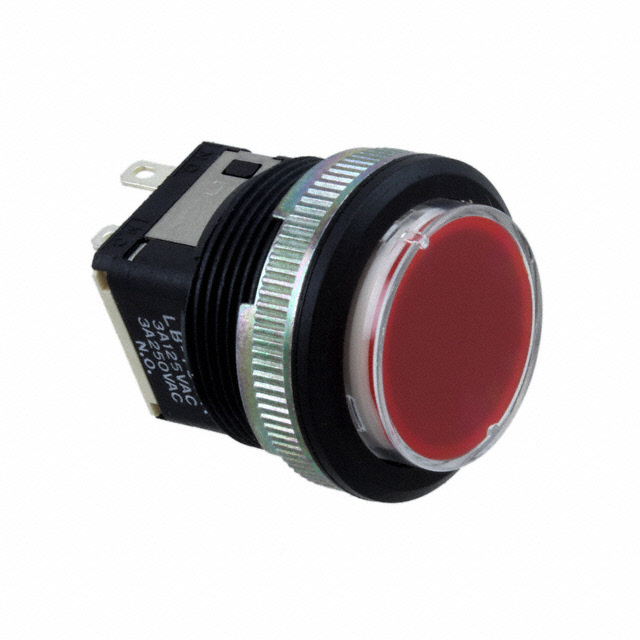

LB16WKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

LB16WKW01-5C12-JC

Active

NKK Switches

STANDARD SIZE PANEL SEAL PUSHBUTTON

Description Specifications Series Pricing CAD Documents

Description

General part information

LB16WKW Series

Pushbutton Switch SPDT Standard, Illuminated Panel Mount, Front

Technical Specifications

Parameters and characteristics for this part

Specification	LB16WKW01-5C12-JC

Actuator Marking	No Marking
Actuator Type	Button, Round
Circuit	SPDT
Color	Red
Color - Actuator/Cap	Clear (Red Filter/Diffuser)
Current Rating	3 A
Electrical Life (Cycles)	100000 Cycles
Illumination Type	LED
Illumination Voltage (Nominal)	12 V
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Mechanical Life (Cycles)	200000 Cycles
Mounting Type	Front, Panel Mount
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-25 °C
Panel Cutout Diameter	22 mm
Panel Cutout Shape	Circular
Quick Connect Size (0.110")	0.11 in
Switch Function	On-On
Termination Style	Quick Connect, Solder
Type	Standard, Illuminated
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

LB16WKW Series

Part	Mechanical Life (Cycles)	Electrical Life (Cycles)	Illumination Type	Color	Ingress Protection IP Rating	Ingress Protection Description	Operating Temperature (Min)	Operating Temperature (Max)	Quick Connect Size (0.110")	Termination Style	Switch Function	Color - Actuator/Cap	Current Rating	Type	Panel Cutout Diameter	Panel Cutout Shape	Voltage Rating - DC	Voltage Rating - AC	Actuator Marking	Mounting Type	Actuator Type	Illumination Voltage (Nominal)	Circuit
NKK Switches LB16WKW01-5F-JC	200000 Cycles	100000 Cycles	LED	Green	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (Red Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	2.1 VDC	SPDT
NKK Switches LB16WKW01	200000 Cycles	100000 Cycles			IP65	Dust Tight Water Resistant	-25 °C	70 °C	0.11 in	Quick Connect Solder	On-On		3 A	Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Plunger for Cap		SPDT
NKK Switches LB16WKW01-5C05-JC	200000 Cycles	100000 Cycles	LED	Red	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (Red Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	5 V	SPDT
NKK Switches LB16WKW01-5D-JB	200000 Cycles	100000 Cycles	LED	Amber	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (White Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	2 VDC	SPDT
NKK Switches LB16WKW01-5C24-JB	200000 Cycles	100000 Cycles	LED	Red	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (White Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	24 V	SPDT
NKK Switches LB16WKW01-5D24-JD	200000 Cycles	100000 Cycles	LED	Amber	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (Amber Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	24 V	SPDT
NKK Switches LB16WKW01-A	200000 Cycles	100000 Cycles			IP65	Dust Tight Water Resistant	-25 °C	70 °C	0.11 in	Quick Connect Solder	On-On	Black	3 A	Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round		SPDT
NKK Switches LB16WKW01-5F05-JB	200000 Cycles	100000 Cycles	LED	Green	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (White Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	5 V	SPDT
NKK Switches LB16WKW01-5C12-JC	200000 Cycles	100000 Cycles	LED	Red	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (Red Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	12 V	SPDT
NKK Switches LB16WKW01-05-JF	200000 Cycles	100000 Cycles	Incandescent	Green	IP65	Dust Tight Water Resistant	-25 °C	50 °C	0.11 in	Quick Connect Solder	On-On	Clear (Green Filter/Diffuser)	3 A	Illuminated Standard	22 mm	Circular	30 V	125 V	No Marking	Front Panel Mount	Button Round	5 V	SPDT
