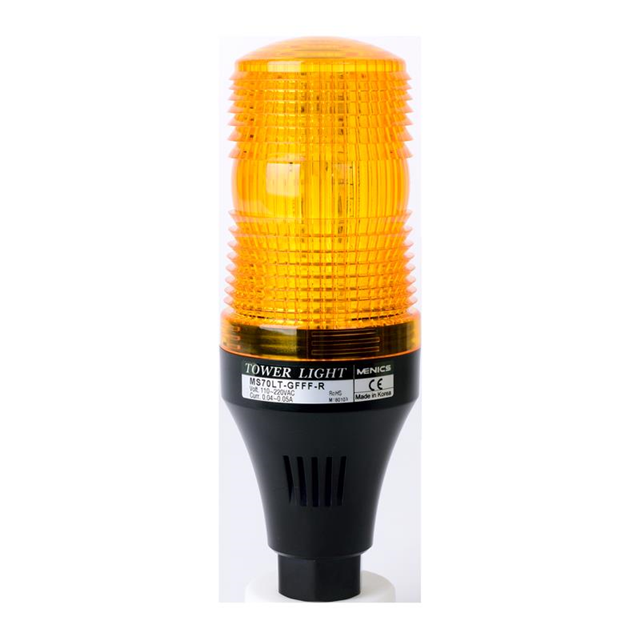

Specification	MS70LT-PF00-Y

Function - Lighting	Flashing
Ingress Protection Description	Dust Tight, Water Resistant
Ingress Protection IP Rating	IP65
Lamp Type	LED
Light Color	Yellow
Number of Stacks	1
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	24 VAC
Voltage - Supply (Minimum)	12 VDC

MS70LT Series

Part	Lamp Type	Operating Temperature (Max)	Operating Temperature (Min)	Type	Light Color	Function - Lighting	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Number of Stacks	Ingress Protection IP Rating	Ingress Protection Description
Menics MS70LT-MF00-G	LED	50 °C	-20 °C	Complete Unit	Green	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MF00-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MBFF-R	LED	50 °C	-20 °C	Complete Unit	Red	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-PF00-G	LED	50 °C	-20 °C	Complete Unit	Green	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MFFF-C	LED	50 °C	-20 °C	Complete Unit	Clear	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-GFFF-B	LED	50 °C	-20 °C	Complete Unit	Blue	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MFFF-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-GBFF-C	LED	50 °C	-20 °C	Complete Unit	Clear	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-GBFF-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-MF00-B	LED	50 °C	-20 °C	Complete Unit	Blue	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources
