MS70LT-GBFF-Y

Active

COMPLETE UNIT YLW LED FLASHING

Active

COMPLETE UNIT YLW LED FLASHING

Description

General part information

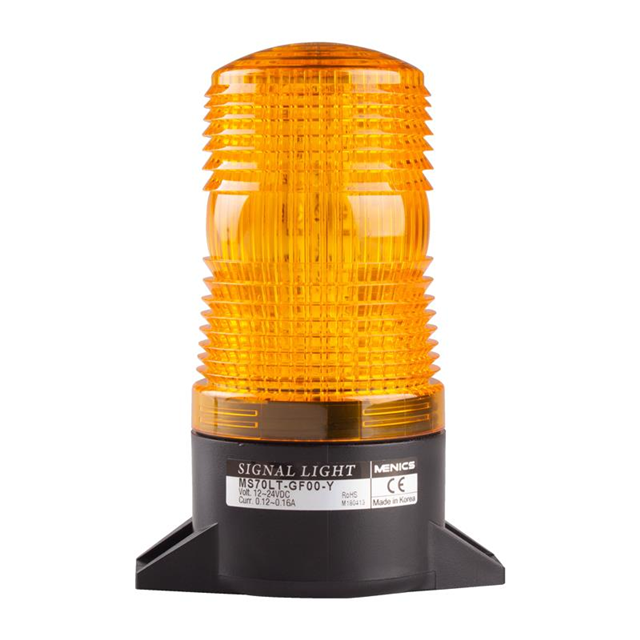

Stack Light Complete Unit Yellow LED Wire Leads

Parameters and characteristics for this part

Specification	MS70LT-GBFF-Y

Function - Lighting	Flashing
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Lamp Type	LED
Light Color	Yellow
Number of Stacks	1
Operating Temperature (Max)	50 °C
Operating Temperature (Min)	-20 °C
Termination Style	Wire Leads
Type	Complete Unit
Voltage - Supply (Maximum)	220 VAC
Voltage - Supply (Minimum)	110 VAC

Part	Lamp Type	Operating Temperature (Max)	Operating Temperature (Min)	Type	Light Color	Function - Lighting	Voltage - Supply (Minimum)	Voltage - Supply (Maximum)	Termination Style	Number of Stacks	Ingress Protection IP Rating	Ingress Protection Description
Menics MS70LT-MF00-G	LED	50 °C	-20 °C	Complete Unit	Green	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MF00-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MBFF-R	LED	50 °C	-20 °C	Complete Unit	Red	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-PF00-G	LED	50 °C	-20 °C	Complete Unit	Green	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MFFF-C	LED	50 °C	-20 °C	Complete Unit	Clear	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-GFFF-B	LED	50 °C	-20 °C	Complete Unit	Blue	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-MFFF-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	110 VAC	220 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
Menics MS70LT-GBFF-C	LED	50 °C	-20 °C	Complete Unit	Clear	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-GBFF-Y	LED	50 °C	-20 °C	Complete Unit	Yellow	Flashing	110 VAC	220 VAC	Wire Leads	1	IP50	Dust Protected
Menics MS70LT-MF00-B	LED	50 °C	-20 °C	Complete Unit	Blue	Flashing	12 VDC	24 VAC	Wire Leads	1	IP65	Dust Tight Water Resistant
