255110-01-12.00
ActiveAmphenol RF

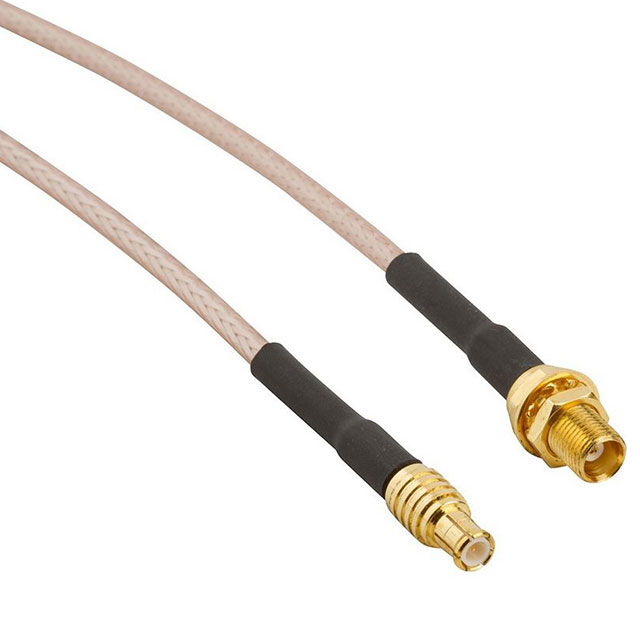

RF / COAXIAL CABLE ASSEMBLY, MCX PLUG TO MCX BULKHEAD JACK, RG316, 50 OHM, 1 FT, 305 MM, BLACK
Deep-Dive with AI
Search across all available documentation for this part.
255110-01-12.00
ActiveAmphenol RF
RF / COAXIAL CABLE ASSEMBLY, MCX PLUG TO MCX BULKHEAD JACK, RG316, 50 OHM, 1 FT, 305 MM, BLACK
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 255110-01-12.00 |
|---|---|
| 1st Connector | MCX Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | MCX Socket |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Copper |
| Features | Shielded |
| Length | 12 " |
| Length | 304.8 mm |
| Overall Impedance | 50 Ohms |
| Style | MCX to MCX |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
255110 Series
The 255110-01-12.00 is a 12-inch RG-316/U Coaxial Cable Assembly with MCX straight plug to MCX bulkhead jack connection. This assembly offers a push-on/pull-off mating interface and 50Ω impedance.
