General part information

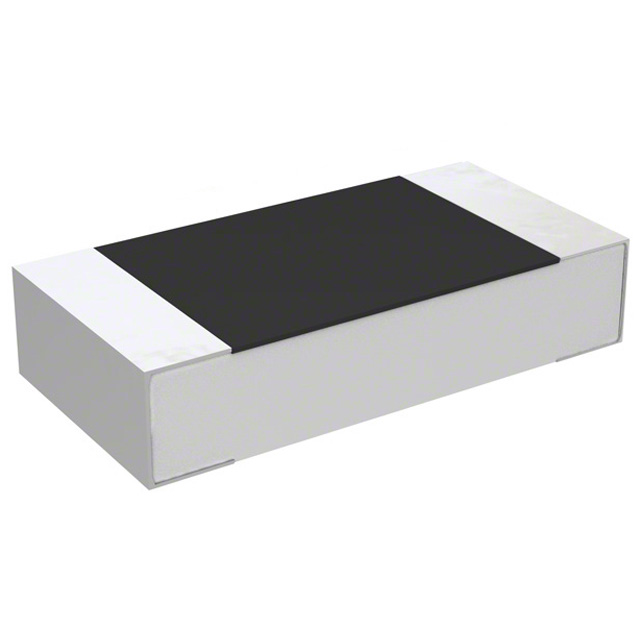

1 MOhms ±0.1% 0.125W, 1/8W Chip Resistor 1206 (3216 Metric) Thin Film
Technical documentation and resources
Parameters and characteristics for this part
| Specification | 1-1614967-0 |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 1206 (3216 Metric) |
| Power (Watts) | 0.125 W |
| Power (Watts) | 0.125 W |
| Resistance | 1 MOhms |
| Supplier Device Package | 1206 |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
RES SMD 1M OHM 0.1% 1/8W 1206
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Resistance | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Power (Watts) | Power (Watts) | Tolerance | Supplier Device Package | Temperature Coefficient | Package / Case | Composition | Number of Terminations |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Passive Product 1-1614967-0 | 155 °C | -55 °C | 1 MOhms | 0.026 in | 0.65 mm | 0.125 W | 0.125 W | 0.1 % | 1206 | 25 ppm/°C | 1206 (3216 Metric) | Thin Film | 2 |
