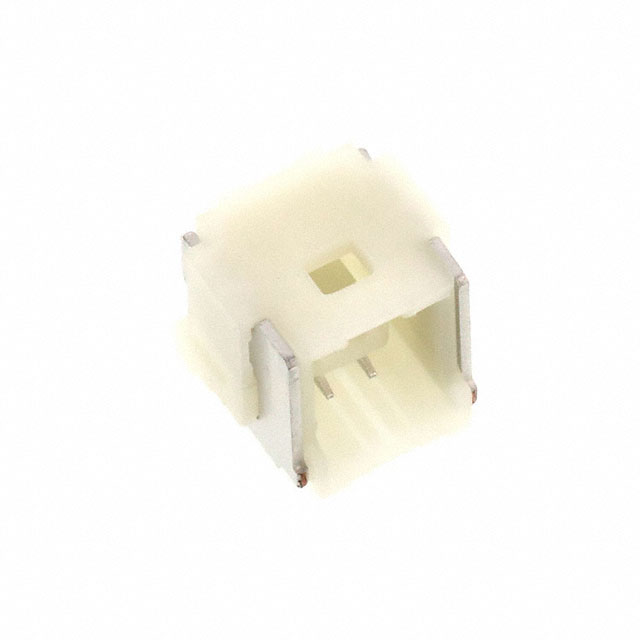

10136353-02111LF

Active

Amphenol ICC (FCI)

CONN RCPT 2POS 0.059 TIN SMD R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT 2POS 0.059 TIN SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10136353-02111LF

Connector Type	Receptacle
Contact Finish - Post	Tin
Contact Material	Copper Alloy
Contact Type	Forked
Current Rating (Amps)	2 A
Fastening Type	Latch Holder
Features	Pick and Place, Solder Retention
Insulation Height	6.35 mm
Insulation Height	0.25 in
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	100 V

Part	Connector Type	Number of Rows	Number of Positions Loaded	Features	Contact Type	Insulation Height	Insulation Height	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Fastening Type	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Voltage Rating	Number of Positions	Termination	Insulation Material	Style	Contact Material
Amphenol ICC (FCI) 10136353-14111LF	Receptacle	1	All	Pick and Place Solder Retention	Forked	6.35 mm	0.25 in	Surface Mount Right Angle	2 A	Tin	Latch Holder	125 °C	-40 °C	UL94 V-0	100 V	14	Solder	Thermoplastic	Board to Cable/Wire	Copper Alloy
Amphenol ICC (FCI) 10136353-02111LF	Receptacle	1	All	Pick and Place Solder Retention	Forked	6.35 mm	0.25 in	Surface Mount Right Angle	2 A	Tin	Latch Holder	125 °C	-40 °C	UL94 V-0	100 V	2	Solder	Thermoplastic	Board to Cable/Wire	Copper Alloy
Amphenol ICC (FCI) 10136353-08111LF	Receptacle	1	All	Pick and Place Solder Retention	Forked	6.35 mm	0.25 in	Surface Mount Right Angle	2 A	Tin	Latch Holder	125 °C	-40 °C	UL94 V-0	100 V	8	Solder	Thermoplastic	Board to Cable/Wire	Copper Alloy
Amphenol ICC (FCI) 10136353-13111LF	Receptacle	1	All	Pick and Place Solder Retention	Forked	6.35 mm	0.25 in	Surface Mount Right Angle	2 A	Tin	Latch Holder	125 °C	-40 °C	UL94 V-0	100 V	13	Solder	Thermoplastic	Board to Cable/Wire	Copper Alloy
Amphenol ICC (FCI) 10136353-06111LF	Receptacle	1	All	Pick and Place Solder Retention	Forked	6.35 mm	0.25 in	Surface Mount Right Angle	2 A	Tin	Latch Holder	125 °C	-40 °C	UL94 V-0	100 V	6	Solder	Thermoplastic	Board to Cable/Wire	Copper Alloy

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Receptacle Connector 0.059" (1.50mm) Surface Mount, Right Angle Tin
