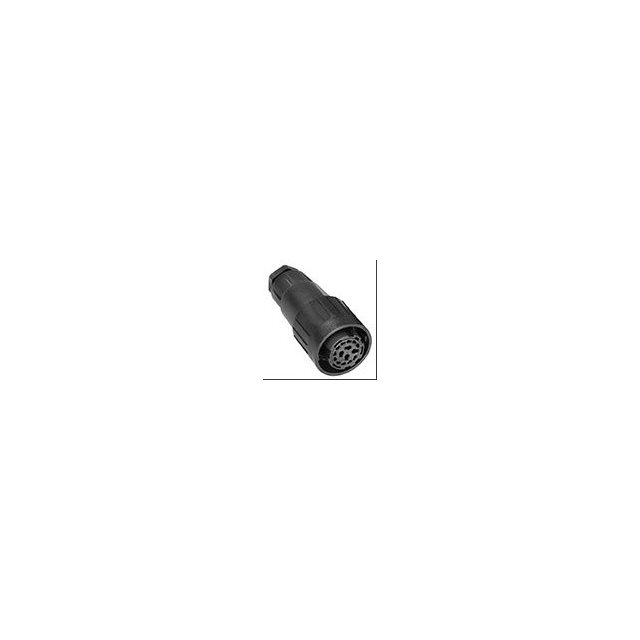

C01610E0170021

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 18POS INLINE

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN PLUG HSG FMALE 18POS INLINE

Technical Specifications

Parameters and characteristics for this part

Specification	C01610E0170021

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	1.5 mm
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell
Housing Color	Black
Includes	1 Washer, 2 Screws, 1 Backshell, 1 Gasket, 1 Connector, 2 pc Cable Clamp, 1 Cable Nut
Ingress Protection	IP65 - Dust Tight, Water Resistant
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	17, 18
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	N
Shell Material	Polyamide (PA66), Nylon 6/6
Shell Size - Insert	1
Shielding	Unshielded
Type	For Female Sockets

CONN PLUG HSG FMALE 18POS INLINE

Part	Shell Size - Insert	Shielding	Orientation	Shell Material	Ingress Protection	Note	Includes	Fastening Type	Contact Shape	Type	Housing Color	Connector Type	Mounting Type	Material Flammability Rating	Features	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Number of Positions	Contact Size
Amphenol Tuchel Industrial C01610E0170021	1	Unshielded	N	Polyamide (PA66), Nylon 6/6	IP65 - Dust Tight, Water Resistant	Contacts Not Included	1 Backshell, 1 Cable Nut, 1 Connector, 1 Gasket, 1 Washer, 2 pc Cable Clamp, 2 Screws	Bayonet Lock	Circular	For Female Sockets	Black	Plug Housing	Free Hanging (In-Line)	UL94 V-0	Backshell, Cable Clamp, Coupling Nut	125 °C	-40 °C	Crimp	17, 18	1.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

18 (17 + PE) Position Circular Connector Plug Housing Free Hanging (In-Line) Backshell, Cable Clamp, Coupling Nut
