B32776E4356K000

Active

EPCOS - TDK Electronics

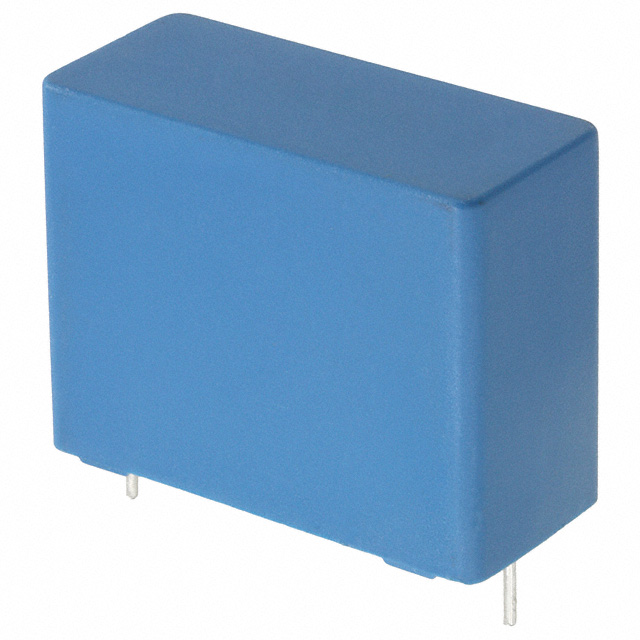

CAP FILM 35UF 10% 450VDC RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

B32776E4356K000

Active

EPCOS - TDK Electronics

CAP FILM 35UF 10% 450VDC RADIAL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	B32776E4356K000	B32776E Series

Applications	DC Link, DC Filtering	DC Link, DC Filtering
Capacitance	35 µF	14 - 60 µF
Dielectric Material	Metallized, Polypropylene (PP)	Metallized, Polypropylene (PP)
ESR (Equivalent Series Resistance)	6.4 mOhms	4 - 11.5 mOhms
Features	Long Life	Long Life
Height - Seated (Max) [Max] [z]	37 mm	32.5 - 45 mm
Height - Seated (Max) [Max] [z]	1.457 in	1.28 - 1.772 "
Lead Spacing	37.5 mm	37.5 mm
Lead Spacing	1.476 in	1.476 in
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial	Radial
Size / Dimension [x]	42 mm	41.5 - 42 mm
Size / Dimension [x]	1.654 in	1.634 - 1.654 in
Size / Dimension [y]	28 mm	18 - 30 mm
Size / Dimension [y]	1.102 in	0.709 - 1.181 in
Termination	PC Pins	PC Pins
Tolerance	10 %	5 - 10 %
Voltage Rating - DC	450 V	450 - 800 V

B32776E Series

CAP FILM 25UF 10% 575VDC RADIAL

Part	Termination	ESR (Equivalent Series Resistance)	Applications	Lead Spacing	Lead Spacing	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Voltage Rating - DC	Features	Dielectric Material	Mounting Type	Tolerance	Capacitance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
EPCOS - TDK Electronics B32776E5256K000	PC Pins	7.4 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	20 mm	0.787 in	1.654 in	575 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	25 µF	-40 °C	105 ░C	39.5 mm	1.555 "
EPCOS - TDK Electronics B32776E5456K000	PC Pins	4.4 mOhm	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	30 mm	1.181 in	1.654 in	575 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	45 µF	-40 °C	105 ░C	45 mm	1.772 in
EPCOS - TDK Electronics B32776E4356K000	PC Pins	6.4 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	450 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	35 µF	-40 °C	105 ░C	37 mm	1.457 in
EPCOS - TDK Electronics B32776E4306K000	PC Pins	7.3 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	20 mm	0.787 in	1.654 in	450 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	30 µF	-40 °C	105 ░C	39.5 mm	1.555 "
EPCOS - TDK Electronics B32776E8146K000	PC Pins	11.5 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	41.5 mm	18 mm	0.709 "	1.634 "	800 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	14 µF	-40 °C	105 ░C	32.5 mm	1.28 in
EPCOS - TDK Electronics B32776E5306K000	PC Pins	6.1 mOhm	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	575 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	30 µF	-40 °C	105 ░C	37 mm	1.457 in
EPCOS - TDK Electronics B32776E4606K000	PC Pins	4 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	30 mm	1.181 in	1.654 in	450 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	10 %	60 µF	-40 °C	105 ░C	45 mm	1.772 in
EPCOS - TDK Electronics B32776E8256J000	PC Pins	6.4 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	800 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	5 %	25 µF	-40 °C	105 ░C	42.5 mm	1.673 in
EPCOS - TDK Electronics B32776E8206J000	PC Pins	7.8 mOhms	DC Filtering, DC Link	37.5 mm	1.476 in	Radial	42 mm	28 mm	1.102 in	1.654 in	800 V	Long Life	Metallized, Polypropylene (PP)	Through Hole	5 %	20 µF	-40 °C	105 ░C	37 mm	1.457 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	440	$ 8.02

Description

General part information

B32776E Series

35 µF Film Capacitor 450V Polypropylene (PP), Metallized Radial
