BA580
ActiveL-com
ADAPTOR SMA M/TNC F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BA580
ActiveL-com
ADAPTOR SMA M/TNC F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BA580 |
|---|---|
| Adapter Series | SMA to TNC |
| Adapter Type | Plug to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Brass |
| Center Contact Plating | Gold, Nickel |
| Conversion Type | Between Series |
| Convert From (Adapter End) | SMA Plug, Male Pin |
| Convert To (Adapter End) | Female Socket, TNC Jack |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
- Series
| Part | Dielectric Material | Convert From (Adapter End) | Impedance | Body Finish | Adapter Series | Body Material | Mounting Type | Style | Center Contact Plating | Adapter Type | Center Gender | Fastening Type | Convert To (Adapter End) | Center Contact Material | Conversion Type | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
L-com | Polyoxymethylene (POM) Acetal | BNC Jack Female Socket | 75 Ohms | Nickel | BNC to BNC Dual | Brass | Free Hanging (In-Line) | T-Shape | Gold | Jack to Jack | Female to Female | Bayonet Lock | BNC Jack Female Socket (2) | Brass | Same Series | |
L-com | Polytetrafluoroethylene (PTFE) | Female Socket SMA Jack | 50 Ohms | Nickel | SMA to SMA Dual | Brass | Free Hanging (In-Line) | T-Shape | Gold | Jack to Jack | Female to Female | Female Socket (2) SMA Jack | Beryllium Copper | Same Series | ||
L-com | SMA Plug Male Pin | 50 Ohms | Nickel | SMA to SMA | Brass | Free Hanging (In-Line) Right Angle | Right Angle | Gold | Plug to Jack | Female Socket SMA Jack | Same Series | |||||
L-com | Polyoxymethylene (POM) Acetal | BNC Plug Male Pin | 50 Ohms | Nickel | BNC to BNC Dual | Brass | Free Hanging (In-Line) | T-Shape | Gold | Plug to Jack | Bayonet Lock | BNC Jack Female Socket (2) | Brass | Same Series | ||
L-com | Polyoxymethylene (POM) Acetal | BNC Jack Female Socket | 75 Ohms | Nickel | BNC to BNC | Brass | Straight | Gold | Jack to Jack | Female to Female | Bayonet Lock | BNC Jack Female Socket | Brass | Same Series | Bulkhead | |
L-com | Polyoxymethylene (POM) Acetal | BNC Plug Male Pin | 50 Ohms | Nickel | BNC to F | Brass | Free Hanging (In-Line) | Straight | Gold | Plug to Jack | Bayonet Lock Threaded | F Jack Female Socket | Brass | Between Series | ||
L-com | Polytetrafluoroethylene (PTFE) | BNC Plug Male Pin | 50 Ohms | Nickel | BNC to SMA | Brass | Free Hanging (In-Line) | Straight | Gold | Plug to Jack | Bayonet Lock Threaded | Female Socket SMA Jack | Copper Alloy | Between Series | ||
L-com | Polytetrafluoroethylene (PTFE) | SMA Plug Male Pin | Nickel | SMA to TNC | Brass | Free Hanging (In-Line) | Straight | Gold Nickel | Plug to Jack | Female Socket TNC Jack | Brass | Between Series | ||||
L-com | Polytetrafluoroethylene (PTFE) | BNC Plug Male Pin | 50 Ohms | Nickel | BNC to N | Brass | Free Hanging (In-Line) | Straight | Gold | Plug to Plug | Male to Male | Bayonet Lock Threaded | Male Pin N Plug | Brass | Between Series | |
L-com | Polyoxymethylene (POM) Acetal | BNC Plug Male Pin | 50 Ohms | Nickel | BNC to SMA | Brass | Free Hanging (In-Line) | Straight | Gold | Plug to Plug | Male to Male | Bayonet Lock Threaded | Male Pin SMA Plug | Brass | Between Series |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 21.57 | |
| 10 | $ 16.62 | |||
| 25 | $ 15.04 | |||
| 50 | $ 13.98 | |||
| 100 | $ 13.01 | |||
| 250 | $ 11.87 | |||
| 500 | $ 11.10 | |||
Description
General part information
- Series

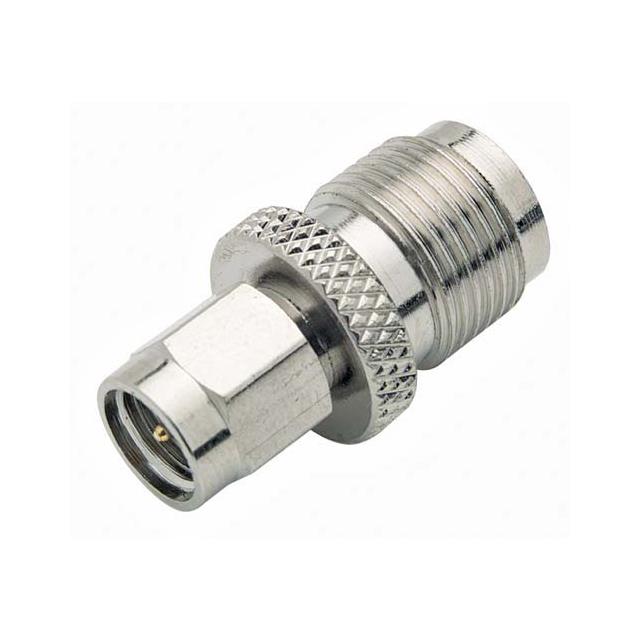

Adapter Coaxial Connector SMA Plug, Male Pin To TNC Jack, Female Socket
