ABMT-S6-C69

Active

Panduit Corp

CABLE TIE MOUNT, #6 SCREW (M3), 1.12"X1. ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Panduit Corp

CABLE TIE MOUNT, #6 SCREW (M3), 1.12"X1. ROHS COMPLIANT: YES

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

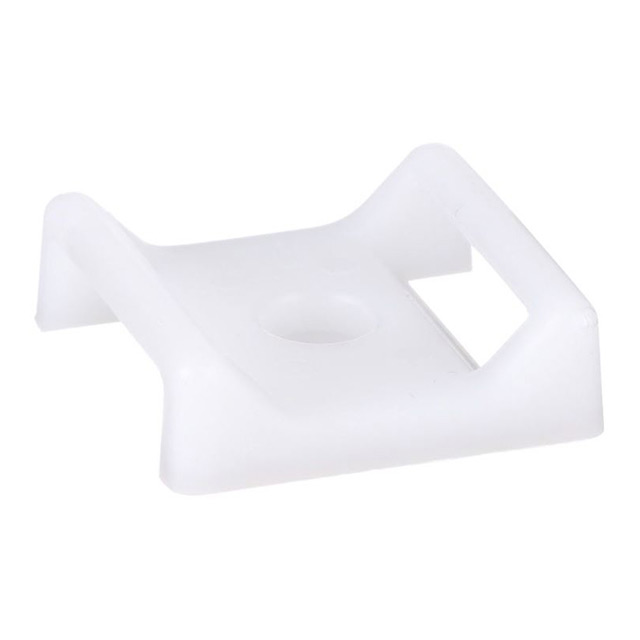

Dual Opening Cable Tie Holder Natural Screw, #6 (M3)

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	ABMT-S6-C69	ABMT Series

Color	Natural	Natural, Black
For Use With/Related Products	HTL/HLS Tak-Ty® Hook and Loop Ties	HTL/HLS Tak-Ty® Hook and Loop Ties
Material	Nylon, Flame Retardant	Nylon, Flame Retardant, Nylon
Mounting Type	Screw, #6 (M3)	Screw, #6 (M3), Adhesive, #6 (M3), Screw
Shelf Life	-	36 Months
Size / Dimension [x]	28.4 mm	28.4 mm
Size / Dimension [x]	1.12 "	1.12 "
Size / Dimension [y]	1.12 in	1.12 in
Size / Dimension [y]	28.4 mm	28.4 mm
Size / Dimension [z]	0.34 in	0.34 in
Size / Dimension [z]	8.6 mm	8.6 mm
Type	Dual Opening	Dual Opening

CABLE TIE MOUNT, #6 SCREW (M3), 1.12"X1. ROHS COMPLIANT: YES

Part	Color	Mounting Type	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Material	For Use With/Related Products	Shelf Life
Panduit Corp ABMT-S6-C69	Natural	Screw, #6 (M3)	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon, Flame Retardant	HTL/HLS Tak-Ty® Hook and Loop Ties
Panduit Corp ABMT-S6-C	Natural	Screw, #6 (M3)	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon	HTL/HLS Tak-Ty® Hook and Loop Ties
Panduit Corp ABMT-S6-Q	Natural	Screw, #6 (M3)	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon	HTL/HLS Tak-Ty® Hook and Loop Ties
Panduit Corp ABMT-S6-C20	Black	Screw, #6 (M3)	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon	HTL/HLS Tak-Ty® Hook and Loop Ties
Panduit Corp ABMT-A-Q20	Black	#6 (M3), Adhesive, Screw	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon	HTL/HLS Tak-Ty® Hook and Loop Ties	36 Months
Panduit Corp ABMT-S6-Q69	Natural	Screw, #6 (M3)	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon, Flame Retardant	HTL/HLS Tak-Ty® Hook and Loop Ties
Panduit Corp ABMT-A-C20	Black	#6 (M3), Adhesive, Screw	Dual Opening	1.12 in	28.4 mm	0.34 in	28.4 mm	8.6 mm	1.12 "	Nylon	HTL/HLS Tak-Ty® Hook and Loop Ties
