R143703000

Active

Radiall USA, Inc.

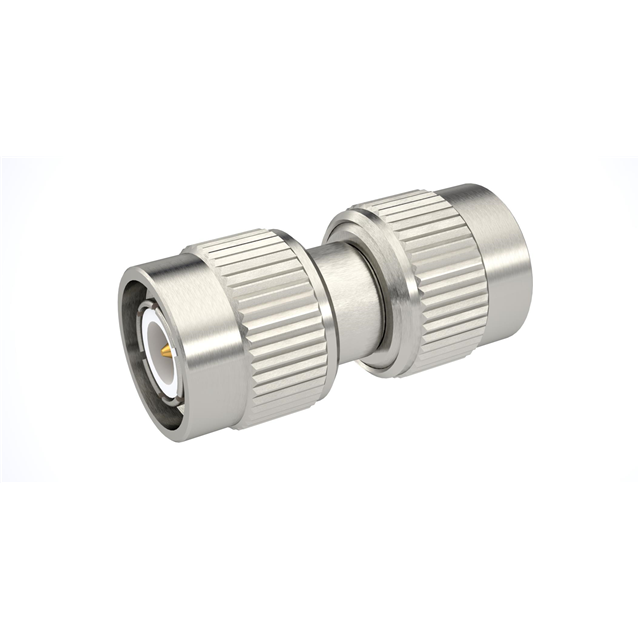

TNC / MALE-MALE ADAPTER

Search across all available documentation for this part.

Active

Radiall USA, Inc.

TNC / MALE-MALE ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	R143703000

Adapter Series	TNC to TNC
Adapter Type	Plug to Plug
Body Finish	Nickel
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Center Gender	Male to Male
Conversion Type	Same Series
Convert To (Adapter End)	TNC Plug, Male Pin
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Style	Straight

Part	Mating Cycles	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Center Contact Material	Center Contact Plating	Conversion Type	Dielectric Material	Frequency - Max [Max]	Convert To (Adapter End)	Convert From (Adapter End)	Body Finish	Adapter Series	Mounting Type	Body Material	Style	Impedance	Center Gender
Radiall USA, Inc. R143704000	500	-65 ░C	165 °C	Jack to Jack	Beryllium Copper	Gold	Same Series	Polytetrafluoroethylene (PTFE)	11 GHz	Female Socket TNC Jack	TNC Jack Female Socket	Nickel	TNC to TNC	Free Hanging (In-Line)	Brass	Straight	50 Ohms	Female to Female
Radiall USA, Inc. R143704700	500	-65 ░C	165 °C	Jack to Jack	Beryllium Copper	Gold	Same Series	Polytetrafluoroethylene (PTFE)	18 GHz	Female Socket TNC Jack	TNC Jack Female Socket		TNC to TNC	Free Hanging (In-Line)	Stainless Steel	Straight	50 Ohms	Female to Female
Radiall USA, Inc. R143703000	500	-65 ░C	165 °C	Plug to Plug	Brass	Gold	Same Series	Polytetrafluoroethylene (PTFE)	11 GHz	Male Pin TNC Plug		Nickel	TNC to TNC	Free Hanging (In-Line)	Brass	Straight	50 Ohms	Male to Male
Radiall USA, Inc. R143703700	500	-65 ░C	165 °C	Plug to Plug	Brass	Gold	Same Series	Polytetrafluoroethylene (PTFE)	18 GHz	Male Pin TNC Plug			TNC to TNC	Free Hanging (In-Line)	Stainless Steel	Straight	50 Ohms	Male to Male
Radiall USA, Inc. R143705700	500	-65 ░C	165 °C	Plug to Jack	Beryllium Copper	Gold	Same Series	Polytetrafluoroethylene (PTFE)	18 GHz	Female Socket TNC Jack			TNC to TNC	Free Hanging (In-Line)	Stainless Steel	Straight	50 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 76.86

General part information

Adapter Coaxial Connector TNC Plug, Male Pin To TNC Plug, Male Pin 50 Ohms
