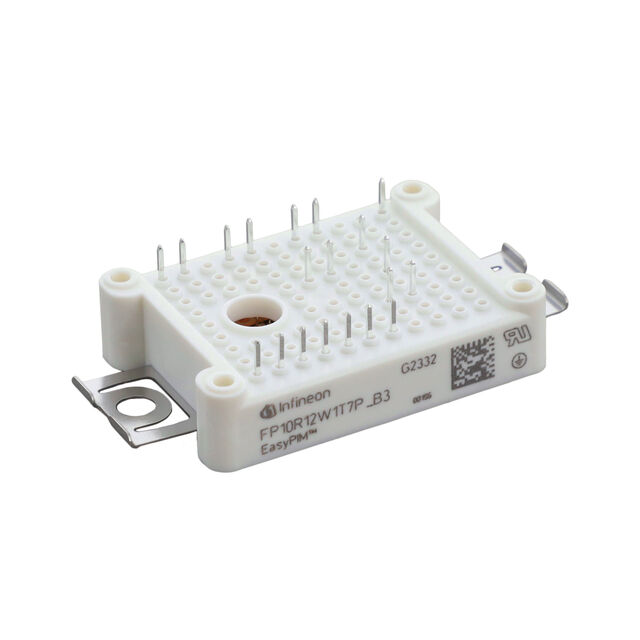

FP10R12W1T7PB3BPSA1

Active

Infineon Technologies

LOW POWER EASY

Search across all available documentation for this part.

Active

Infineon Technologies

LOW POWER EASY

Technical Specifications

Parameters and characteristics for this part

Specification	FP10R12W1T7PB3BPSA1

null

Part	Input Capacitance (Cies) @ Vce	Operating Temperature [Min]	Operating Temperature [Max]	Configuration	Current - Collector Cutoff (Max) [Max]	Package / Case	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Input	Mounting Type	IGBT Type	Vce(on) (Max) @ Vge, Ic	Supplier Device Package	Current - Collector (Ic) (Max)
Infineon Technologies FP10R12W1T7B3BOMA1	1.89 nF	-40 C	175 °C	Three Phase Inverter	4.5 µA	Module	1200 V	20 mW	Three Phase Bridge Rectifier	Chassis Mount	Trench Field Stop	1.6 V	AG-EASY1B-2
Infineon Technologies FP10R12W1T4PB11BPSA1	600 pF			Three Phase Inverter	1 mA	Module	1200 V	20 mW	Three Phase Bridge Rectifier	Chassis Mount	Trench Field Stop	2.25 V	Module	20 A
Infineon Technologies FP10R12W1T7PB3BPSA1
Infineon Technologies FP10R12YT3BOMA1
Infineon Technologies FP10R12W1T7PBPSA1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

IGBT Module

Technical documentation and resources
