Technical Specifications
Parameters and characteristics for this part
| Specification | EVAL-L9001 |
|---|---|
| Contents | Board(s) |
| Function | Power Supply |
| Supplied Contents | Board(s) |
| Type | Power Management |
| Utilized IC / Part | L9001 |
EVAL-L9001 Series
Evaluation board for L9001 SPS - Simple Power Supply - Multiple Voltage Regulator
| Part | Package / Case [y] | Package / Case | Package / Case [y] | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package | Grade | Voltage - Supply [Max] | Voltage - Supply [Min] | Qualification | Current - Supply | Mounting Type | Function | Utilized IC / Part | Contents | Supplied Contents | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics | 7.5 mm | 24-PowerBSOP | 0.295 in | -40 °C | 125 °C | PowerSSO-24 | Automotive | 18 V | 5.5 V | AEC-Q100 | 150 µA | Surface Mount | |||||
STMicroelectronics | Power Supply | L9001 | Board(s) | Board(s) | Power Management |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 28.57 | |
Description
General part information
EVAL-L9001 Series

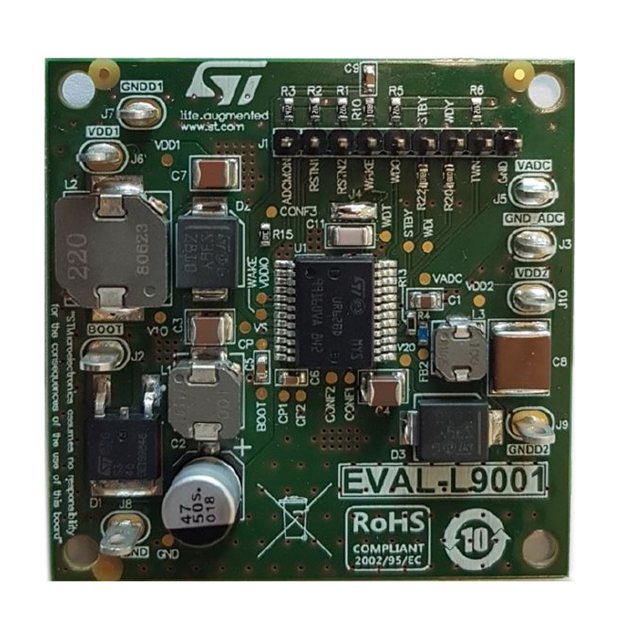

EVAL-L9001 is a low cost tool designed to evaluate L9001, a smart power device designed by STMicroelectronics in advanced BCD technology.
L9001 SPS (Simple Power Supply) device is a Multiple output power regulator for automotive applications with one buck regulator, one regulator configurable as buck or linear and one more linear regulator. Its output voltages are configurable via discrete pins. On top of the regulators, this device integrates a watchdog functional block, and a diagnosis functional block (under/over voltage, output current and temperature).
Device is capable of low power operation mode with main regulators still active and reduced power consumption from battery.
