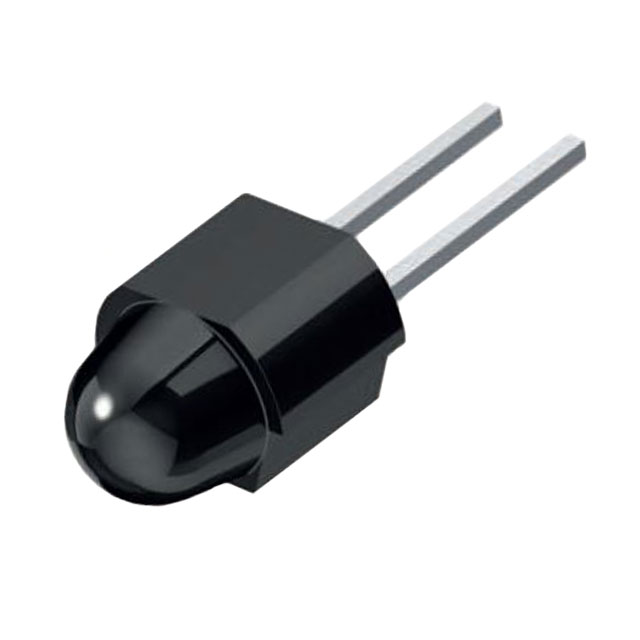

SFH 4543-BWCW

Active

ams-OSRAM USA INC.

EMITTER IR 940NM SMR RADIAL

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

EMITTER IR 940NM SMR RADIAL

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	SFH 4543-BWCW	SFH4543 Series

Current - DC Forward (If) (Max) [Max]	100 mA	100 mA
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Top View	Top View
Package / Case	Radial	Radial
Radiant Intensity (Ie) Min @ If [Min]	160 mW/sr	63 - 160 mW/sr
Type	Infrared (IR)	Infrared (IR)
Viewing Angle	20 °	20 °
Voltage - Forward (Vf) (Typ)	1.5 V	1.5 V
Wavelength	950 nm	940 - 950 nm

EMITTER IR 940NM SMR RADIAL

Part	Type	Package / Case	Mounting Type	Radiant Intensity (Ie) Min @ If [Min]	Wavelength	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Viewing Angle	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max) [Max]
ams-OSRAM USA INC. SFH 4543-BWCW	Infrared (IR)	Radial	Through Hole	160 mW/sr	950 nm	Top View	85 °C	-40 °C	20 °	1.5 V	100 mA
ams-OSRAM USA INC. SFH 4543-Z	Infrared (IR)	Radial	Through Hole	63 mW/sr	940 nm	Top View	85 °C	-40 °C	20 °	1.5 V	100 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Infrared (IR) Emitter 950nm 1.5V 100mA 160mW/sr @ 100mA 20° Radial
