7380-5PG-300

Active

Conxall/Switchcraft

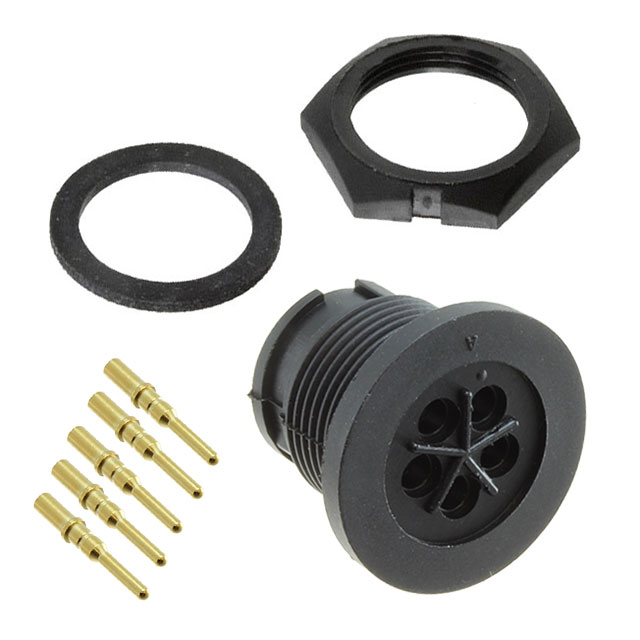

CONN RCPT MALE 5POS GOLD CRIMP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN RCPT MALE 5POS GOLD CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	7380-5PG-300

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Ingress Protection	Weathertight
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

CONN RCPT MALE 5POS GOLD CRIMP

Part	Backshell Material, Plating	Applications	Termination	Primary Material	Shielding	Orientation	Mounting Feature	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Current Rating (Amps)	Contact Material	Connector Type	Fastening Type	Contact Finish - Mating	Color	Ingress Protection
Conxall/Switchcraft 7380-5PG-300	Nylon, Polyamide (PA)	Automotive, Communication Systems, Instrumentation	Crimp	Plastic	Unshielded	Keyed	Bulkhead - Front Side Nut	-40 °C	115 °C	600 V	Varies by Wire Gauge	Brass	Male Pins, Receptacle	Bayonet Lock	Gold	Black	Weathertight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Crimp
