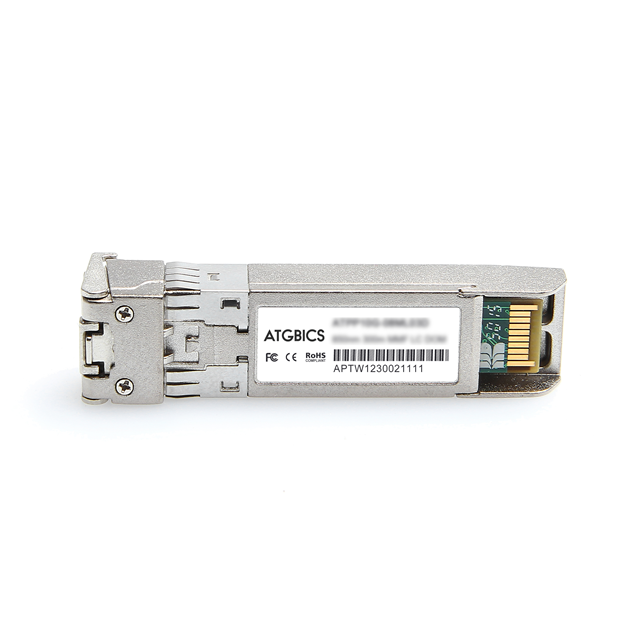

QK724A-C
ActiveATGBICS
COMPATIBLE SFP+ 16G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
QK724A-C
ActiveATGBICS
COMPATIBLE SFP+ 16G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | QK724A-C | - Series |
|---|---|---|
| 2nd Connector | - | LC/UPC |
| Applications | General Purpose, Networking | General Purpose, Networking |
| Cable Diameter | - | 3 mm |
| Cable Diameter | - | 0.12 in |
| Cable Type | - | Fiber Patch |
| Connector Type | LC Duplex | LC Duplex |
| Data Rate | 16 Gbps | 16 Gbps |
| Length - Overall | - | 1 - 15 m |
| Length - Overall | - | 3.3 - 98.4 ' |
| Length - Overall | - | 5 - 30 m |
| Length - Overall | - | 16.4 ft |
| Mounting Type | Pluggable, SFP+ | Pluggable, SFP+ |
| Ratings | - | OFNR |
| Type | - | Multimode, OM4 |
| Voltage - Supply | 3.3 V | 3.3 V |
| Wavelength | 850 nm | 850 - 1310 nm |
- Series
LC-LCOM4 FIBER PATCH MM D 15M
| Part | Cable Type | Type | 2nd Connector | Cable Diameter [diameter] | Cable Diameter [diameter] | Length - Overall [x] | Length - Overall [x] | Ratings | Data Rate | Voltage - Supply | Wavelength | Applications | Connector Type | Mounting Type | Length - Overall | Length - Overall |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ATGBICS QK735A-C | Fiber Patch | Multimode, OM4 | LC/UPC | 3 mm | 0.12 in | 15 m | 49.2 ' | OFNR | ||||||||
ATGBICS QK733A-C | Fiber Patch | Multimode, OM4 | LC/UPC | 3 mm | 0.12 in | 2 m | 6.6 ft | OFNR | ||||||||
ATGBICS QK725A-C | 16 Gbps | 3.3 V | 1310 nm | General Purpose, Networking | LC Duplex | Pluggable, SFP+ | ||||||||||
ATGBICS QK732A-C | Fiber Patch | Multimode, OM4 | LC/UPC | 3 mm | 0.12 in | 1 m | 3.3 ft | OFNR | ||||||||
ATGBICS QK724A-C | 16 Gbps | 3.3 V | 850 nm | General Purpose, Networking | LC Duplex | Pluggable, SFP+ | ||||||||||
ATGBICS QK736A-C | Fiber Patch | Multimode, OM4 | LC/UPC | 3 mm | 0.12 in | 98.4 ft | OFNR | 30 m | ||||||||
ATGBICS QK734A-C | Fiber Patch | Multimode, OM4 | LC/UPC | 3 mm | 0.12 in | OFNR | 5 m | 16.4 ft |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 122.00 | |
| 50 | $ 115.90 | |||
| 150 | $ 109.80 | |||
| 1000 | $ 103.70 | |||
Description
General part information
- Series
Transceiver Module Networking, General Purpose 16Gbps 850nm 3.3V LC Duplex Pluggable, SFP+
