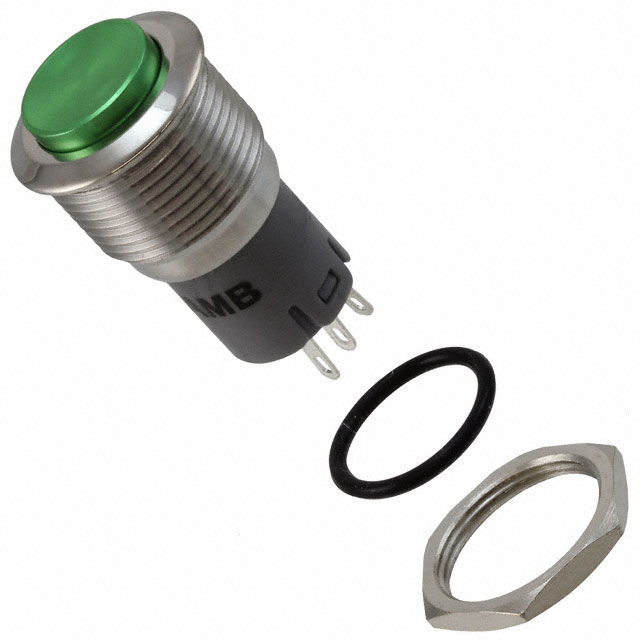

PV3SC2B0S8

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 2A/48VDC; IP40; ON-(ON)

Deep-Dive with AI

Search across all available documentation for this part.

PV3SC2B0S8

Active

E-Switch

SWITCH: VANDAL RESISTANT; POS: 2; SPDT; 2A/48VDC; IP40; ON-(ON)

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PV3SC2B0S8

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPDT
Color - Actuator/Cap	Green
Current Rating (Amps)	2 A
Electrical Life	50000 Cycles
Ingress Protection	IP40
Mechanical Life	200000 Cycles
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [diameter]	16 mm
Switch Function	On-Mom
Termination Style	Solder Lug
Type	Anti-Vandal
Voltage Rating - DC	48 V

PV3F2 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Panel Cutout Dimensions [diameter]	Switch Function	Illumination Type, Color	Actuator Marking	Voltage Rating - DC	Mechanical Life	Current Rating (Amps)	Type	Electrical Life	Circuit	Mounting Type	Termination Style	Color - Actuator/Cap	Actuator Type	Illumination Voltage (Nominal)	Ingress Protection
E-Switch PV3F2B0SS-343	55 °C	-20 C	16 mm	On-Mom	Blue LED	No Marking	48 V	200000 Cycles	2 A	Anti-Vandal Illuminated	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	Silver	Button Flush Round	6 V	IP40
E-Switch PV3F2B011-343	55 °C	-20 C	16 mm	On-Mom	Blue LED	No Marking	48 V	200000 Cycles	2 A	Anti-Vandal Illuminated	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	Black	Button Flush Round	6 V	IP40
E-Switch PV3F2H0NN-214	55 °C	-20 C	16 mm	On-Mom	LED Red	No Marking	48 V	200000 Cycles	2 A	Anti-Vandal Illuminated	50000 Cycles	DPDT	Panel Mount Front	Solder Lug	Silver	Button Flush Round	12 VDC	IP40
E-Switch PV3F2B0SS	55 °C	-20 C	16 mm	On-Mom		No Marking	48 V	200000 Cycles	2 A	Anti-Vandal	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	Silver	Button Flush Round		IP40
E-Switch PV3WG2B012G	55 °C	-20 C	16 mm	On-Mom		No Marking	48 V	200000 Cycles	2 A	Anti-Vandal	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	White	Button Full Guard Round		IP67 - Dust Tight Waterproof
E-Switch PV3F2H0SS-335	55 °C	-20 C	16 mm	On-Mom	Green LED	No Marking	48 V	200000 Cycles	2 A	Anti-Vandal Illuminated	50000 Cycles	DPDT	Panel Mount Front	Solder Lug	Silver	Button Flush Round	24 V	IP40
E-Switch PV3HWH0NN	55 °C	-20 C	16 mm	On-Mom		No Marking	48 V	200000 Cycles	2 A	Anti-Vandal	50000 Cycles	DPDT	Panel Mount Front	Wire Leads	Silver	Button Round		IP40
E-Switch PV3F2B0NN	55 °C	-20 C	16 mm	On-Mom		No Marking	48 V	200000 Cycles	2 A	Anti-Vandal	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	Silver	Button Flush Round		IP40
E-Switch PV3F2H011-304	55 °C	-20 C	16 mm	On-Mom	LED White	No Marking	48 V	200000 Cycles	2 A	Anti-Vandal Illuminated	50000 Cycles	DPDT	Panel Mount Front	Solder Lug	Black	Button Flush Round	12 VDC	IP40
E-Switch PV3SC2B0S8	55 °C	-20 C	16 mm	On-Mom		No Marking	48 V	200000 Cycles	2 A	Anti-Vandal	50000 Cycles	SPDT	Panel Mount Front	Solder Lug	Green	Button Round		IP40

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.76
		10	$ 10.63
		40	$ 9.60
		80	$ 9.26
		280	$ 8.69
		520	$ 7.96
		1000	$ 7.03
TME	N/A	1	$ 13.16
		10	$ 12.50
		50	$ 11.76

Description

General part information

PV3F2 Series

Pushbutton Switch SPDT Anti-Vandal Panel Mount, Front
