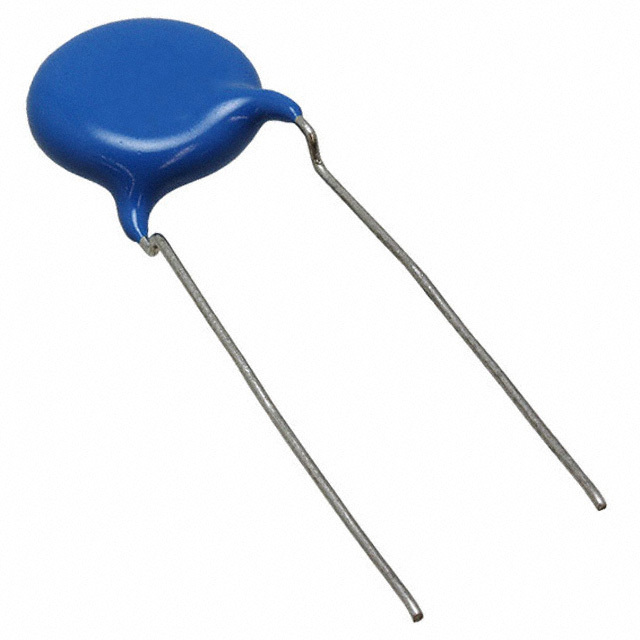

C971U472MUWDBA7317

KEMET

CAP CER 4700PF 400VAC Y5U RADIAL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsC971U472MUWDBA7317 Datasheet

C971U472MUWDBA7317

KEMET

CAP CER 4700PF 400VAC Y5U RADIAL

Deep-Dive with AI

DocumentsC971U472MUWDBA7317 Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	C971U472MUWDBA7317

Applications	Safety
Capacitance	4700 pF
Lead Spacing	0.394 in
Lead Spacing	10 mm
Lead Style	Formed Leads - Kinked
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	Disc, Radial
Ratings	Y1, X1
Temperature Coefficient	Y5U (E)
Tolerance	20 %
Voltage - Rated	400 VAC

C971U Series

Part	Mounting Type	Lead Spacing	Lead Spacing	Applications	Temperature Coefficient	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Rated	Tolerance	Capacitance	Package / Case	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Lead Style	Ratings
KEMET C971U472MUWDAAWL50	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial	0.197 in	5 mm	Straight	X1 Y1
KEMET C971U472MUWDCA7317	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Formed Leads - Kinked	X1 Y1
KEMET C971U472MUWDAAWL45	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Straight	X1 Y1
KEMET C971U472MVWDBAWL35	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Formed Leads - Kinked	X1 Y1
KEMET C971U472MVWDBA7317	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Formed Leads - Kinked	X1 Y1
KEMET C971U472MUWDAA7317	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Straight	X1 Y1
KEMET C971U472MUWDBA7317	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Formed Leads - Kinked	X1 Y1
KEMET C971U472MVWDBAWL40	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Formed Leads - Kinked	X1 Y1
KEMET C971U472MVWDAA7317	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Straight	X1 Y1
KEMET C971U472MVWDAAWL20	Through Hole	0.394 in	10 mm	Safety	Y5U (E)	125 °C	-40 °C	400 VAC	20 %	4700 pF	Disc Radial			Straight	X1 Y1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.80
		10	$ 1.39
		50	$ 1.27
		100	$ 1.06
	Tape & Box (TB)	500	$ 0.66

Description

General part information

C971U Series

4700 pF ±20% 400VAC Ceramic Capacitor Y5U (E) Radial, Disc

Documents

Technical documentation and resources

C971U472MUWDBA7317

Datasheet
