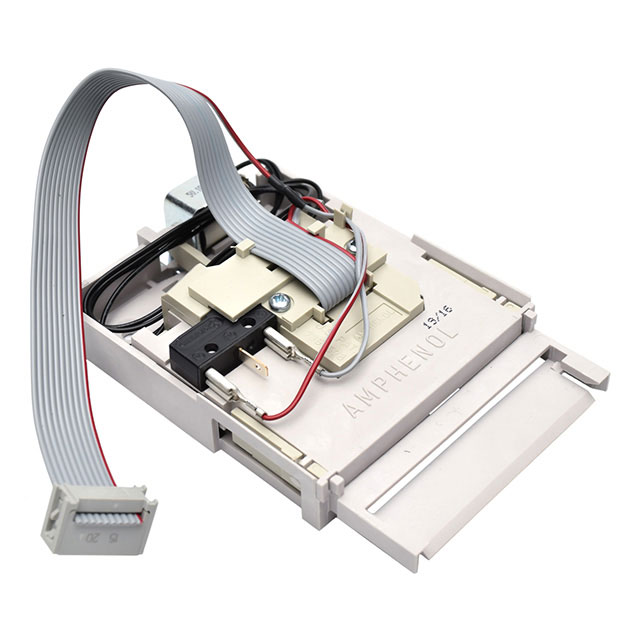

C70210M0087322

Active

Amphenol Tuchel Industrial

CONN SMART CARD PUSHMATIC

Search across all available documentation for this part.

Active

Amphenol Tuchel Industrial

CONN SMART CARD PUSHMATIC

Technical Specifications

Parameters and characteristics for this part

Part	Height Above Board [z]	Height Above Board [z]	Number of Positions	Features	Insertion, Removal Method	Mounting Feature	Card Type	Mounting Type	Height Above Board	Height Above Board	Connector Type	Contact Finish
Amphenol Tuchel Industrial C70210M00823040	0.283 in	7.2 mm	10	Board Lock Switch	Pull Out Push In	Normal Standard - Top	Smart Card	Through Hole Right Angle
Amphenol Tuchel Industrial C70210M0087002			10	Assembly with Cable Switch	Auto Eject Out Push In	Normal Standard - Top	Smart Card		0.665 in	16.9 mm	Connector and Ejector
Amphenol Tuchel Industrial C70210M0085142			10	Assembly with Cable Switch	Pull Out Push In	Normal Standard - Top	Smart Card		0.665 in	16.9 mm
Amphenol Tuchel Industrial C70210M0080654			10	Assembly with Cable Switch	Pull Out Push In				0.236 in	6 mm
Amphenol Tuchel Industrial C70210M0087322			10	Assembly with Cable Switch	Auto Eject Out Push In	Normal Standard - Top	Smart Card				Connector and Ejector
Amphenol Tuchel Industrial C70210M00825240			11	Board Guide Switch	Pull Out Push In	Normal Standard - Top		Surface Mount Right Angle	0.142 in	3.6 mm		Gold
Amphenol Tuchel Industrial C70210M0080182			10	Assembly with Cable Switch	Push Only	Normal Standard - Top	Smart Card		0.665 in	16.9 mm
Amphenol Tuchel Industrial C70210M0080664			10	Assembly with Cable Board Lock Switch	Pull Out Push In	Normal Standard - Top	Smart Card		0.307 in	7.8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	147	$ 63.77

General part information

10 (8 + 2) Position Card Connector Smart Card Panel Mount

Technical documentation and resources
