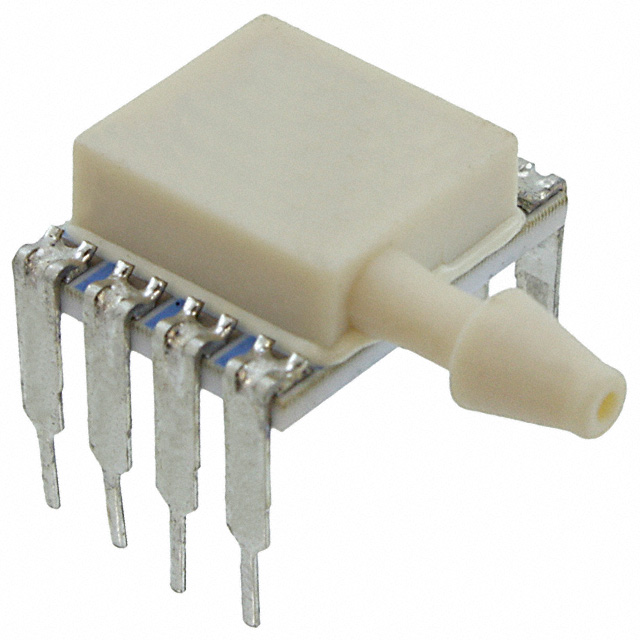

4525-SS5A001GP

Obsolete

TE Connectivity Measurement Specialties

SENSOR 1PSIG 0.14" 4.5V

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 1PSIG 0.14" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	4525-SS5A001GP

Accuracy	0.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	20 PSI
Maximum Pressure	137.9 kPa
Mounting Type	Through Hole
Operating Pressure	6.89 kPa
Operating Pressure	1 PSI
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	8-DIP Module
Port Size	0.14 "
Port Size	3.56 mm
Port Style	Barbed
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Operating Pressure	Operating Pressure	Port Size	Port Size	Port Size	Port Style	Mounting Type	Applications	Accuracy	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Features	Pressure Type	Package / Case	Output Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Maximum Pressure	Maximum Pressure	Output [Min]	Output [Max]
TE Connectivity Measurement Specialties 4525-DS3A100DP
TE Connectivity Measurement Specialties 4525DO-DS5AI001DP	6.89 kPa	1 PSI	0.14 "	3.56 mm	Dual Male Tube	Barbed	Through Hole	Board Mount	0.25 %	PC Pin	-25 °C	105 ░C	Temperature Compensated	Differential	8-DIP Module	I2C	10 PSI	68.95 kPa	14 b
TE Connectivity Measurement Specialties 4525-SS3A100GP
TE Connectivity Measurement Specialties 4525-SS5A001GP	6.89 kPa	1 PSI	0.14 "	3.56 mm		Barbed	Through Hole	Board Mount	0.25 %	PC Pin	-25 °C	105 ░C	Amplified Output Temperature Compensated	Vented Gauge	8-DIP Module	Analog Voltage				20 PSI	137.9 kPa	0.5 V	4.5 V
TE Connectivity Measurement Specialties 4525-SS3A100AP

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 1PSI (6.89kPa) Vented Gauge Male - 0.14" (3.56mm) Tube 0.5 V ~ 4.5 V 8-DIP Module

Technical documentation and resources

No documents available
