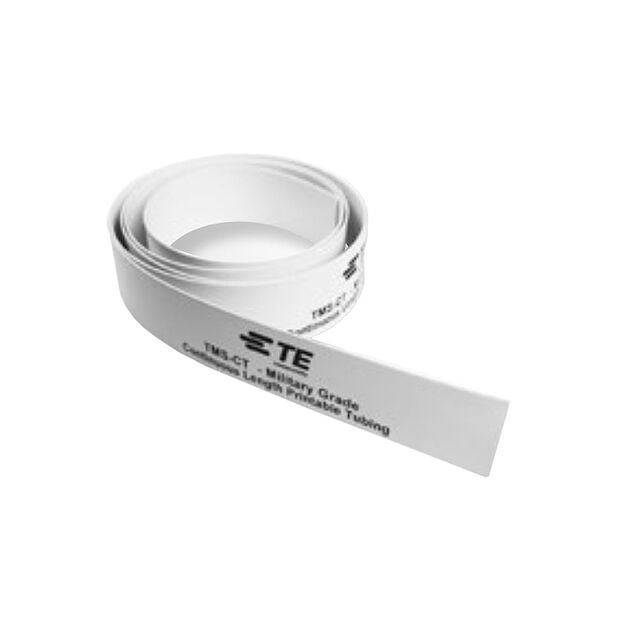

D-CT-50M-4.8-OUT-9

Active

TE Connectivity Raychem Cable Protection

CONTINOUS TUBING METER

Deep-Dive with AI

Search across all available documentation for this part.

D-CT-50M-4.8-OUT-9

Active

TE Connectivity Raychem Cable Protection

CONTINOUS TUBING METER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D-CT-50M-4.8-OUT-9

Color	White
Features	Fluid Resistant
Inner Diameter - Recovered [diameter]	1.52 mm
Inner Diameter - Recovered [diameter]	0.06 in
Inner Diameter - Supplied [diameter]	4.8 mm
Inner Diameter - Supplied [diameter]	0.189 in
Length	Enter Number of Meters in Order Quantity
Material	Polyolefin (PO), Irradiated
Operating Temperature [Max] [custom]	135 °C
Operating Temperature [Min] [custom]	-75 °C
Recovered Wall Thickness	0.58 mm
Recovered Wall Thickness	0.023 in
Shrinkage Ratio [Max]	3
Shrinkage Ratio [Min]	1
Type	Tubing, Flexible

D-CT-50M Series

Part	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Color	Features	Shrinkage Ratio [Min]	Shrinkage Ratio [Max]	Length	Type	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered [diameter]	Material	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]
TE Connectivity Raychem Cable Protection D-CT-50M-6.4-OUT-9	0.25 in	6.35 mm	White	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible	0.58 mm	0.023 in	2.03 mm	0.08 in	Polyolefin (PO) Irradiated	135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-3.2-OUT-9	0.125 "	3.18 mm	White	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible			1.02 mm	0.04 in		135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-3.2-OUT-4	0.125 "	3.18 mm	Yellow	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible			1.02 mm	0.04 in		135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-2.4-OUT-4	0.094 in	2.4 mm	Yellow	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible			0.76 mm	0.03 in		135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-4.8-OUT-9	0.189 in	4.8 mm	White	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible	0.58 mm	0.023 in	1.52 mm	0.06 in	Polyolefin (PO) Irradiated	135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-4.8-OUT-4	0.189 in	4.8 mm	Yellow	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible			1.52 mm	0.06 in		135 °C	-75 °C
TE Connectivity Raychem Cable Protection D-CT-50M-2.4-OUT-9	0.094 in	2.4 mm	White	Fluid Resistant	1	3	Enter Number of Meters in Order Quantity	Tubing Flexible			0.76 mm	0.03 in		135 °C	-75 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Digi-Spool®, Continuous Spool	1	$ 8.68
		2	$ 7.98
		3	$ 7.60
		5	$ 7.14
		7	$ 6.86
		10	$ 6.57
		25	$ 5.88
		50	$ 5.41
		100	$ 4.97

Description

General part information

D-CT-50M Series

Heat Shrink Tubing, Flexible 0.189" (4.80mm) 3 to 1 White Enter Number of Meters in Order Quantity

Documents

Technical documentation and resources

No documents available
