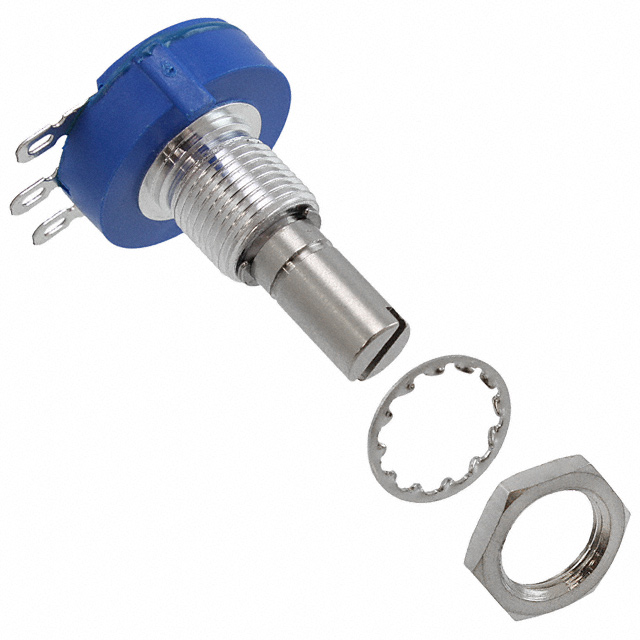

3851A-282-252BL

Active

Bourns Inc.

PANEL CONTROL - 3/4" 1-T /TRAY PACKAGING ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Bourns Inc.

PANEL CONTROL - 3/4" 1-T /TRAY PACKAGING ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Rotation	Actuator Type	Actuator Diameter	Actuator Diameter [diameter]	Resistance (Ohms)	Temperature Coefficient	Tolerance	Bushing Thread	Termination Style	Adjustment Type	Resistive Material	Actuator Length [z]	Actuator Length [z]	Power (Watts)	Number of Gangs	Number of Turns	Taper	Size - Body [diameter]	Size - Body [diameter]	Resistance (Ohms)
Bourns Inc. 3851A-282-252BL	280 °	Slotted	6.35 mm	0.25 in	2.5 kOhms	1000 ppm/°C	20 %	3/8-32	Solder Lug	User Defined	Conductive Plastic	22.23 mm	0.875 in	1 W	1	1	Linear	0.75 in	19.05 mm
Bourns Inc. 3851A-282-103BL	280 °	Slotted	6.35 mm	0.25 in		1000 ppm/°C	20 %	3/8-32	Solder Lug	User Defined	Conductive Plastic	22.23 mm	0.875 in	1 W	1	1	Linear	0.75 in	19.05 mm	10k
Bourns Inc. 3851A-282-102BL	280 °	Slotted	6.35 mm	0.25 in	1 kOhms	1000 ppm/°C	20 %	3/8-32	Solder Lug	User Defined	Conductive Plastic	22.23 mm	0.875 in	1 W	1	1	Linear	0.75 in	19.05 mm
Bourns Inc. 3851A-282-502BL	280 °	Slotted	6.35 mm	0.25 in	5 kOhms	1000 ppm/°C	20 %	3/8-32	Solder Lug	User Defined	Conductive Plastic	22.23 mm	0.875 in	1 W	1	1	Linear	0.75 in	19.05 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	270	$ 8.02
Newark	Each	250	$ 7.23
		500	$ 6.72

General part information

2.5k Ohm 1 Gang Linear Panel Mount Potentiometer None 1 Kierros Conductive Plastic 1W Solder Lug
