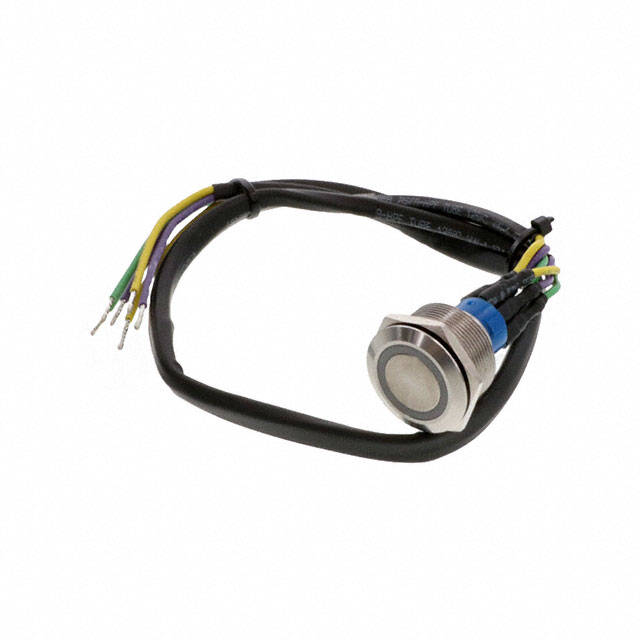

AV2520000T5Q04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON DPDT 3A 250V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AV2520000T5Q04
ActiveTE Connectivity Raychem Cable Protection
SWITCH PUSHBUTTON DPDT 3A 250V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AV2520000T5Q04 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | DPDT |
| Color - Actuator/Cap | Silver |
| Current Rating (Amps) | 3 A |
| Electrical Life | 50000 Cycles |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Mechanical Life | 1000000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Panel Cutout Dimensions [diameter] | 25.2 mm |
| Switch Function | On-Mom |
| Termination Style | Wire Leads |
| Type | Anti-Vandal |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 13.98 | |
| 10 | $ 12.70 | |||
| 25 | $ 12.56 | |||
| 50 | $ 23.15 | |||
| 100 | $ 22.14 | |||
| 300 | $ 20.62 | |||
| 500 | $ 19.94 | |||
Description
General part information
AV2520000 Series
Pushbutton Switch DPDT Anti-Vandal Panel Mount, Front
