DX1119/GN
ActiveBULGIN LIMITED

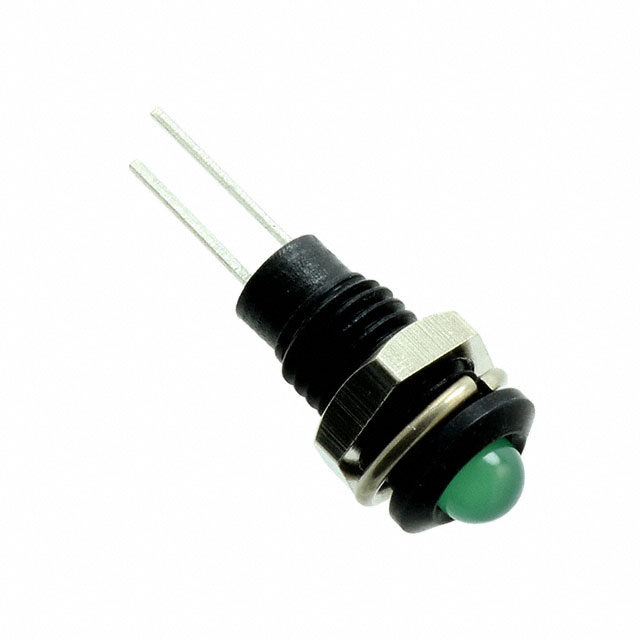

LED PANEL MOUNT INDICATOR, BRASS BEZEL, GREEN, 6.1 MM, 2.1 VDC, 30 MA, 2.5 MCD, NOT RATED
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX1119/GN
ActiveBULGIN LIMITED
LED PANEL MOUNT INDICATOR, BRASS BEZEL, GREEN, 6.1 MM, 2.1 VDC, 30 MA, 2.5 MCD, NOT RATED
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX1119/GN |
|---|---|
| Current | 30 mA |
| Lamp Color | Green |
| Lens Size [diameter] | 4 mm |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 2.5 mcd |
| Panel Cutout Dimensions | 6.1 mm |
| Panel Cutout Dimensions | 0.24 in |
| Panel Cutout Shape | Round |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DX1119 Series
LED Panel Indicator Green 2.1V 30mA PC Pin
