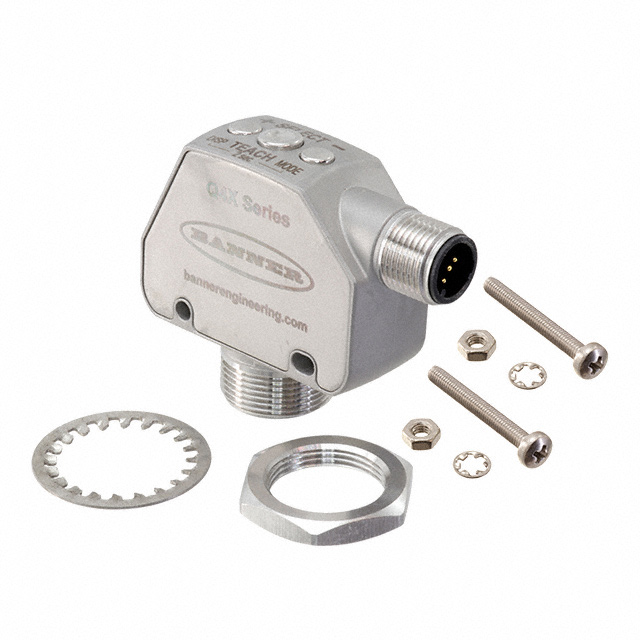

Q4XTBCOD300-Q8

Active

BANNER ENGINEERING

PHOTO SEN CLEAR 300MM BIPOLAR

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTO SEN CLEAR 300MM BIPOLAR

Technical Specifications

Parameters and characteristics for this part

Specification	Q4XTBCOD300-Q8

Ingress Protection	IP69K, IP68, IP67
Light Source	Red (655nm)
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	NPN/PNP
Sensing Distance [Max]	11.811 in
Sensing Distance [Max]	300 mm
Sensing Distance [Min]	25 mm
Sensing Distance [Min]	0.984 in
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Ingress Protection	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Output Configuration	Light Source
BANNER ENGINEERING Q4XTBCOD300-Q8	11.811 in	300 mm	25 mm	0.984 in	IP67 IP68 IP69K	30 VDC	10 VDC	-10 °C	50 °C	NPN/PNP	Red (655nm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optical Sensor 0.984" ~ 11.811" (25mm ~ 300mm) NPN/PNP
