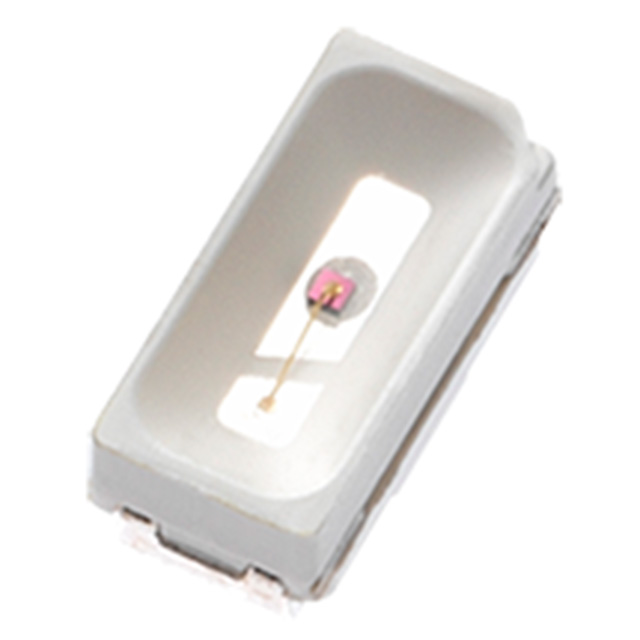

LTW-K140SZR57
ActiveDiodes Inc
LED SZR COOL WHITE 5700K 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LTW-K140SZR57
ActiveDiodes Inc
LED SZR COOL WHITE 5700K 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LTW-K140SZR57 |
|---|---|
| CCT (K) | 5700 K |
| Color | Cool, White |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 80 mA |
| Current - Test | 60 mA |
| Flux @ 25°C, Current - Test | 23 lm |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Lumens/Watt @ Current - Test | 120 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, Flat Leads |
| Size / Dimension [x] | 2.7 mm |
| Size / Dimension [x] | 0.106 in |
| Size / Dimension [y] | 0.055 in |
| Size / Dimension [y] | 1.4 mm |
| Thermal Resistance of Package [custom] | 30 °C/W |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.26 | |
| 10 | $ 0.15 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Digi-Reel® | 1 | $ 0.26 | ||
| 10 | $ 0.15 | |||
| 100 | $ 0.09 | |||
| 500 | $ 0.07 | |||
| 1000 | $ 0.06 | |||
| Tape & Reel (TR) | 12000 | $ 0.05 | ||
| 30000 | $ 0.04 | |||
| 75000 | $ 0.04 | |||
| 150000 | $ 0.04 | |||
Description
General part information
LTW-K140 Series
LED Lighting SZR White, Cool 5700K 3.2V 60mA 120° 2-SMD, Flat Leads
