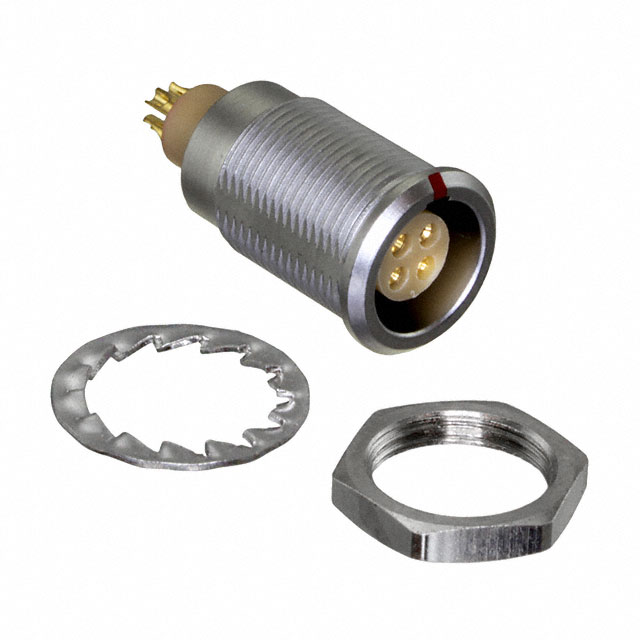

FLBB-04EGFS-GCP-001

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol LTW

CONN RCPT FMALE 4P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	FLBB-04EGFS-GCP-001

Applications	Testing Equipment & Measurement, Medical, Industrial, Telecommunications, Instrumentation
Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	7 A
Fastening Type	Push-Pull
Ingress Protection	IP50
Insert Material	Polyphenylene Sulfide (PPS)
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Orientation	G
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Copper Alloy
Shell Size - Insert	B-4
Shielding	Shielded
Voltage Rating	300 VDC

Part	Connector Type	Fastening Type	Shielding	Voltage Rating	Shell Material	Shell Size - Insert	Shell Finish	Current Rating (Amps)	Orientation	Contact Finish - Mating	Primary Material	Insert Material	Ingress Protection	Contact Material	Number of Positions	Applications	Mounting Feature	Color	Operating Temperature [Max]	Operating Temperature [Min]
Amphenol LTW FLBB-04EGFS-GCP-001	Receptacle Female Sockets	Push-Pull	Shielded	300 VDC	Copper Alloy	B-4	Chrome	7 A	G	Gold	Metal	Polyphenylene Sulfide (PPS)	IP50	Copper Alloy	4	Industrial Instrumentation Medical Telecommunications Testing Equipment & Measurement	Bulkhead - Rear Side Nut	Silver	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
