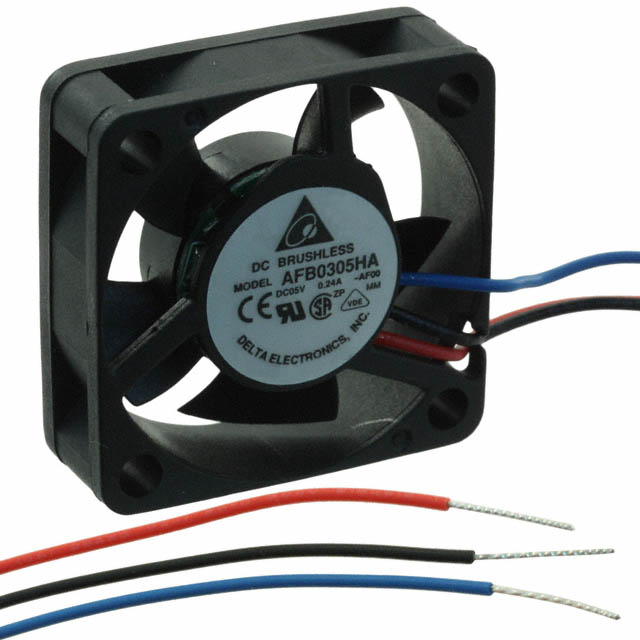

AFB0305HA-AF00

Delta Electronics

FAN AXIAL 30X10MM BALL 5VDC WIRE

Search across all available documentation for this part.

Delta Electronics

FAN AXIAL 30X10MM BALL 5VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	AFB0305HA-AF00

Air Flow	0.098 mł/min
Air Flow	3.5 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Lifetime @ Temp.	30000 Hrs
Material - Blade	Plastic
Material - Frame	Plastic
Noise	25 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	0.8 W
RPM	9000 RPM
Size / Dimension [x]	30 mm
Size / Dimension [z]	30 mm
Static Pressure	0.1 in H2O
Static Pressure	24.9 Pa
Termination	3 Wire Leads
Voltage - Rated	5 V
Voltage Range [Max]	5.5 V
Voltage Range [Min]	4 VDC
Weight	0.024 lb
Weight	10.89 g
Width [y]	10 mm

Part	Approval Agency	Material - Blade	Features	Voltage - Rated	Termination	Width [y]	Static Pressure	Static Pressure	RPM	Size / Dimension [x]	Size / Dimension [z]	Material - Frame	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Noise	Weight	Weight	Bearing Type	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Power (Watts)	Lifetime @ Temp.
Delta Electronics AFB0305HA-AF00	CE CSA UL VDE	Plastic	Locked Rotor Protection Speed Sensor (Tach)	5 V	3 Wire Leads	10 mm	0.1 in H2O	24.9 Pa	9000 RPM	30 mm	30 mm	Plastic	70 °C	70 °C	-10 °C	-10 °C	25 dB(A)	0.024 lb	10.89 g	Ball	0.098 mł/min	3.5 CFM	4 VDC	5.5 V	Tubeaxial	0.8 W	30000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 5VDC Square - 30mm L x 30mm H Ball 3.5 CFM (0.098m³/min) 3 Wire Leads
